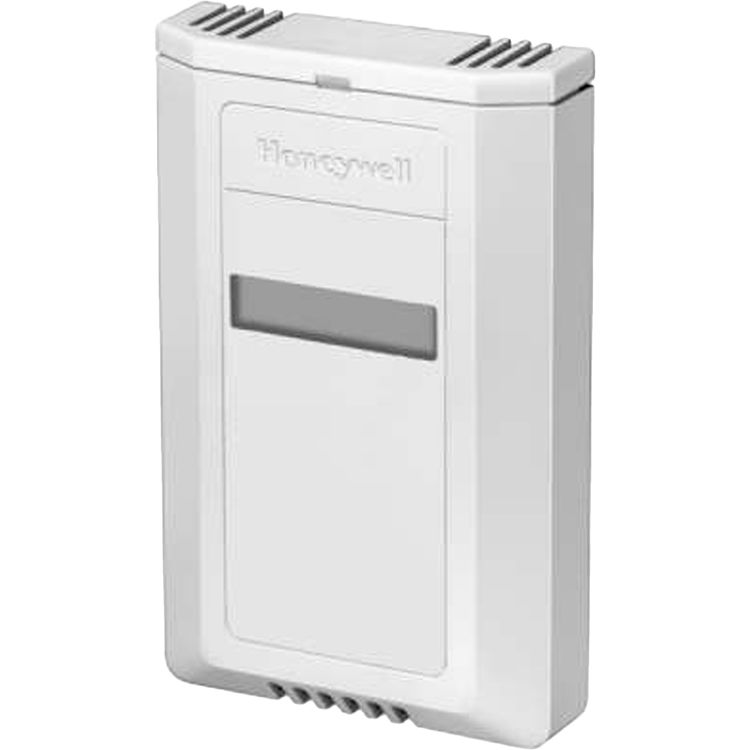

Honeywell C7232A1016/U Wall Mount CO2 /Temperature Sensor

SKU: 372888
Minimum Quantity: 1

$233.08/ea
Save 63% · Retail: $627.32

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$233.08/ea

About the Honeywell C7232A1016

Honeywell C7232A1016/U Wall Mount CO2 /Temperature Sensor. These stand-alone Carbon Dioxide (CO2) Sensors and Controllers are used for determining ventilation necessity with HVAC controllers and to manage the amount of fresh outdoor air supplied to maintain acceptable levels of CO2.

Product Details

Manufacturer: Honeywell
Material: ABS
Faucet Part Feature: Electrical and Sensors
Type: Wall Mounted
Style:
Shape: Crystal
Color: Almond
Mpn # C7232A1016
Weight 0.01 lbs.

Product Features

  • Manage the amount of fresh outdoor air supplied to maintain acceptable levels of CO2 in the space.
  • C7232 provides voltage or current output based on CO2 levels.
  • Carbon Dioxide Sensor
  • 24 Vac
  • 32 F to 122 F
  • 0 C to 50 C
  • One: Normally Open SPST
  • Response--1 minute
  • 5% full scale
  • None
  • 0 to 2000 ppm
  • Used for CO2 based ventilation control.
  • adjustable
  • 0/2 - 10 Vdc or 0/4 - 20 mA selectable
  • w/ one relay output
  • 5 1/16 in. high x 3 5/32 in. wide x 2 in. deep
  • 128 mm high x 80 mm wide x 25 mm deep
  • Honeywell Logo
  • Wall mount
  • 50 Hz; 60 Hz
  • Six leadwires
  • 20-gauge
  • Models available with LCD that provides sensor readings and status information.
  • 8 in. long
  • Non-dispersive Infrared (NDIR)
  • 1 A @ 50 Vac/24 Vdc
  • Non-Dispersion-Infrared (NDIR) technology used to measure carbon dioxide gas.
  • Gold-plated sensor provides long-term calibration stability.
  • Device provides voltage or current output based on CO2 levels.
  • Models available with SPST relay output.
  • Automatic Background Calibration (ABC) algorithm based on long-term evaluation reduces required typical zero-drift check maintenance
  • SPST relay output.
