Honeywell HP971A1024 Honeywell HP971A1024/U Vertical or Horizontal, Direct Acting Pneumatic Humidity Sensor

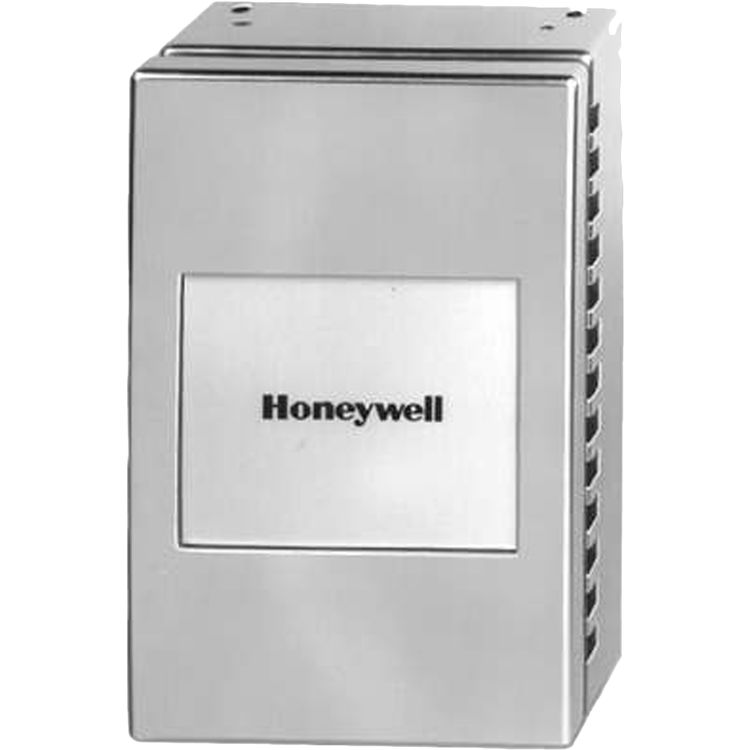

Honeywell HP971A1024/U Vertical or Horizontal, Direct Acting Pneumatic Humidity Sensor

SKU: 373386

This product is not currently available for purchase.

About the Honeywell HP971A1024/U Vertical or Horizontal, Direct Acting Pneumatic Humidity Sensor

Honeywell HP971A1024/U Vertical or Horizontal, Direct Acting Pneumatic Humidity Sensor. A One To Two Pipe, direct-acting humidity sensor. Used with RP908/RP920 Controllers to provide proportional control of pneumatic valve or damper actuators in systems requiring humidification or dehumidification control.

Manufacturer: Honeywell
Faucet Part Feature: Electrical and Sensors
Style: Horizontal
  Pneumatic
Mpn # HP971A1024
Weight 1.50 lbs.
  • Humidity Sensor
  • 125 F Maximum
  • 52 C Maximum
  • Output--3 psi to 15 psi; Supply--16 to 21 psi
  • Output--21 kPa to 103 kPa; Supply--110-145 kPa
  • Direct Acting
  • 1 or 2
  • 15 to 85% RH
  • 0.022 scfm (10.4 mL/s)
  • Push-on barb for 5/32 in. (4 mm) O.D. tubing
  • 3 1/4 in. high x 2 in. wide x 1 5/8 in. deep
  • 88 mm high x 51 mm wide x 41 mm deep
  • 25 psi
  • 172 kPa
  • Order Cover Separately
  • Vertical or Horizontal Wall Mounting or Mounted in Duct Sampling Chamber
