Honeywell HVFDCD1A0005F00 Honeywell HVFDCD1A0005F00/U Honeywell COMPACT SmartVFD

Honeywell HVFDCD1A0005F00/U Honeywell COMPACT SmartVFD

SKU: 373395

This product is not currently available for purchase.

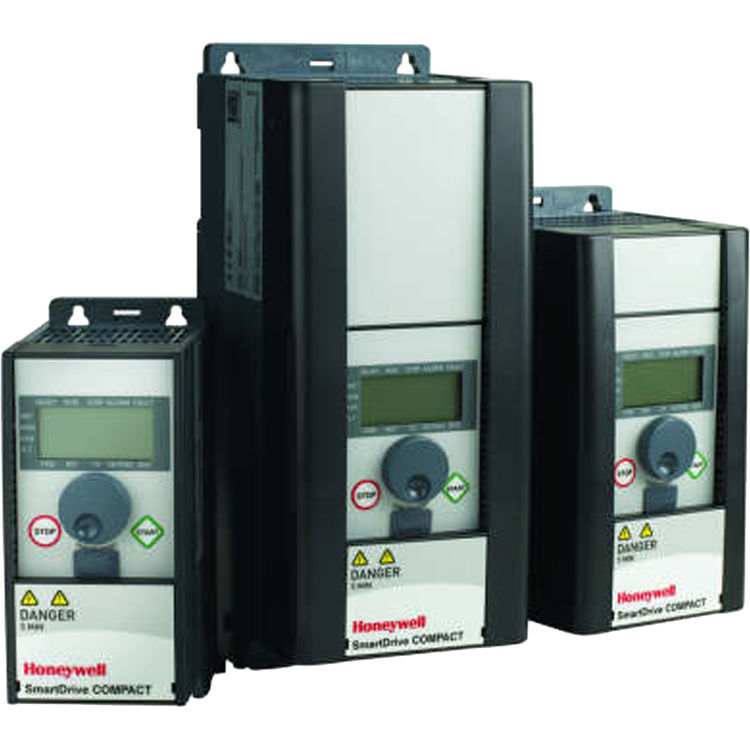

About the Honeywell HVFDCD1A0005F00/U Honeywell COMPACT SmartVFD

Honeywell HVFDCD1A0005F00/U Honeywell COMPACT SmartVFD. Honeywell SmartVFD COMPACT is among the smallest, most streamlined energy saving variable frequency drives (VFD). An intuitive user interface lets you select the capabilities to customize the drive features to the application, eliminating waste.

Product: Variable Frequency Drive
  Smart Variable Frequency Drive
Manufacturer: Honeywell
Mpn # HVFDCD1A0005F00
Weight 2.20 lbs.
  • 7.7 x 3.5 x 4
  • Max. switching load: 250Vac/2A or 250Vdc/0,4A
  • .5 HP
  • 2.4A
  • 0 (4) - 20 mA, max 500 ohm
  • Drive alone
  • SmartVFD COMPACT
  • EMC Filter
  • overload 1.5 x High overload current (1min/10min); overload 1.1 x Low overload current (1min/10min)
  • Depends on the Motor
  • 2 x IN, 2 secs in every 20 sec period
  • 195 x 90 x 102
  • 0.1 - 3000 sec
  • .1 - 3000 sec
  • 0 - 10 Vdc , 200K ohm
  • 0 (4) - 20 mA, 250 ohm differential
  • Open collector, max. load 48V/50mA
  • Maximum Load 10mA
  • ? 20%, max. load 50 mA
  • 2
  • Full
  • 1.5 lb
  • 0.68 kg
  • 0 Hz to 320 Hz
  • 115V/230V 1/3
  • 14 to 122 F
  • -10 to 50 C
  • Open Chassis
