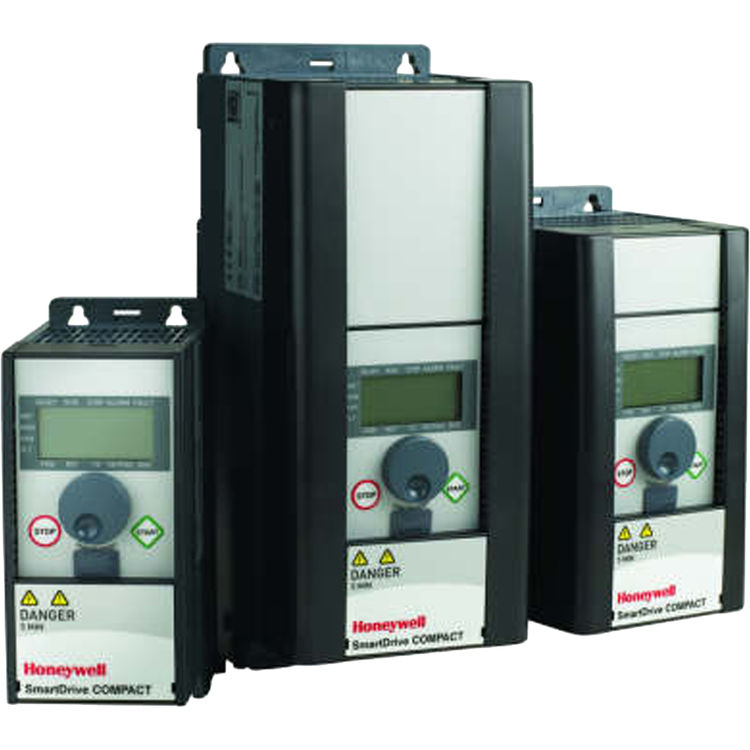

Honeywell HVFDCD1A0010L00/U Honeywell COMPACT SmartVFD

SKU: 373398

$287.15/ea
Save 58% · Retail: $689.18

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$287.15/ea

About the Honeywell HVFDCD1A0010L00

Honeywell HVFDCD1A0010L00/U Honeywell COMPACT SmartVFD. Honeywell SmartVFD COMPACT is among the smallest, most streamlined energy saving variable frequency drives (VFD). An intuitive user interface lets you select the capabilities to customize the drive features to the application, eliminating waste.

Product Details

Product: Smart Variable Frequency Drive
Manufacturer: Honeywell
Mpn # HVFDCD1A0010L00
Weight 2.20 lbs.

Product Features

  • 7.7 x 3.5 x 4
  • Max. switching load: 250Vac/2A or 250Vdc/0,4A
  • 1 HP
  • 3.7A
  • Drive alone
  • SmartVFD COMPACT
  • EMC Filter
  • overload 1.5 x High overload current (1min/10min); overload 1.1 x Low overload current (1min/10min)
  • Depends on the Motor
  • 2 x IN, 2 secs in every 20 sec period
  • 0.1 - 3000 sec
  • 195 x 90 x 102
  • .1 - 3000 sec
  • 0 - 10 Vdc , 200K ohm
  • 0 (4) - 20 mA, 250 ohm differential
  • Open collector, max. load 48V/50mA
  • Maximum Load 10mA
  • ? 20%, max. load 50 mA
  • 2
  • Limited
  • 1.5 lb
  • 0.68 kg
  • 0 Hz to 320 Hz
  • 115V/230V 1/3
  • 14 to 122 F
  • -10 to 50 C
  • Open Chassis
