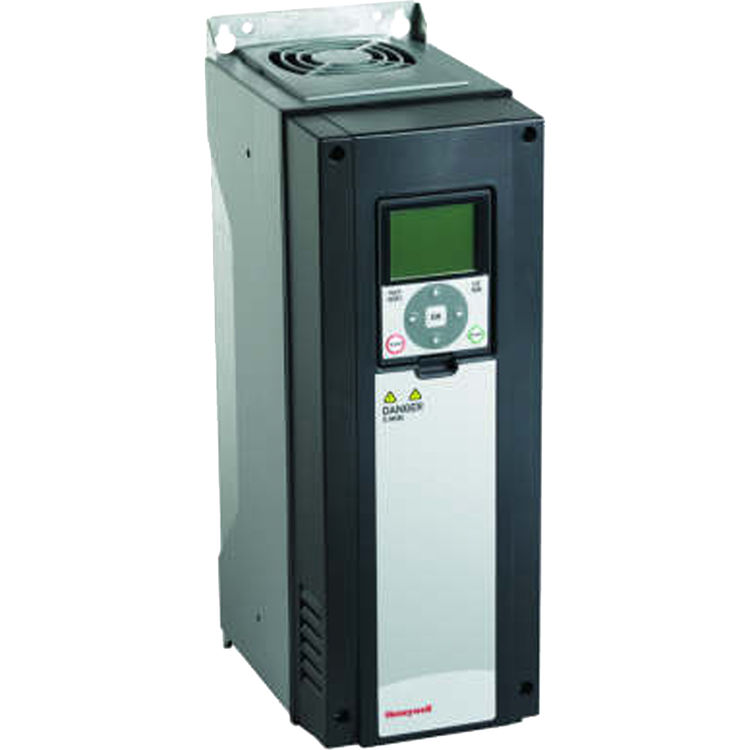

Honeywell HVFDSB3A0007G231 Honeywell HVFDSB3A0007G231/U SmartVFD HVAC. Includes; NEMA Enclosure

Honeywell HVFDSB3A0007G231/U SmartVFD HVAC. Includes; NEMA Enclosure

SKU: 373498

This product is not currently available for purchase.

About the Honeywell HVFDSB3A0007G231/U SmartVFD HVAC. Includes; NEMA Enclosure

Honeywell HVFDSB3A0007G231/U SmartVFD HVAC. Includes; NEMA Enclosure. Honeywell's VFDs are loaded with labor-saving features such as startup wizards, PC programming, and an intuitive graphical interface that allows for faster, more accurate commissioning and reliable maintenance over the life of the drive.

Product: Variable Frequency Drive
  Smart Variable Frequency Drive
Manufacturer: Honeywell
Mpn # HVFDSB3A0007G231
Weight 1.00 lbs.
  • 16 x 37.5 x 11
  • Max. switching load: 250Vac/2A or 250Vdc/0,4A
  • 0.75 HP
  • 3.7A
  • 0 (4) - 20 mA, max 500 ohm
  • Drive with 3 contactor bypass and Auto bypass
  • Yes
  • SmartVFD HVAC
  • 3 Contactors
  • Fused
  • EMC Filter
  • 406.4 x 952.5 x 279.4
  • overload 1.5 x High overload current (1min/10min); overload 1.1 x Low overload current (1min/10min)
  • 9 x IN, 2 secs in every 20 sec period
  • 0.1 - 3000 sec
  • .1 - 3000 sec
  • 0 - 10 Vdc , 200K ohm
  • 0 (4) - 20 mA, 250 ohm differential
  • Open collector, max. load 48V/50mA
  • Maximum Load 10mA
  • ? 20%, max. load 50 mA
  • 4
  • 55
  • 24.95
  • 0 Hz to 320 Hz
  • 208 Vac
  • 14 to 114 F
  • -10 to 50 C
  • NEMA 12
