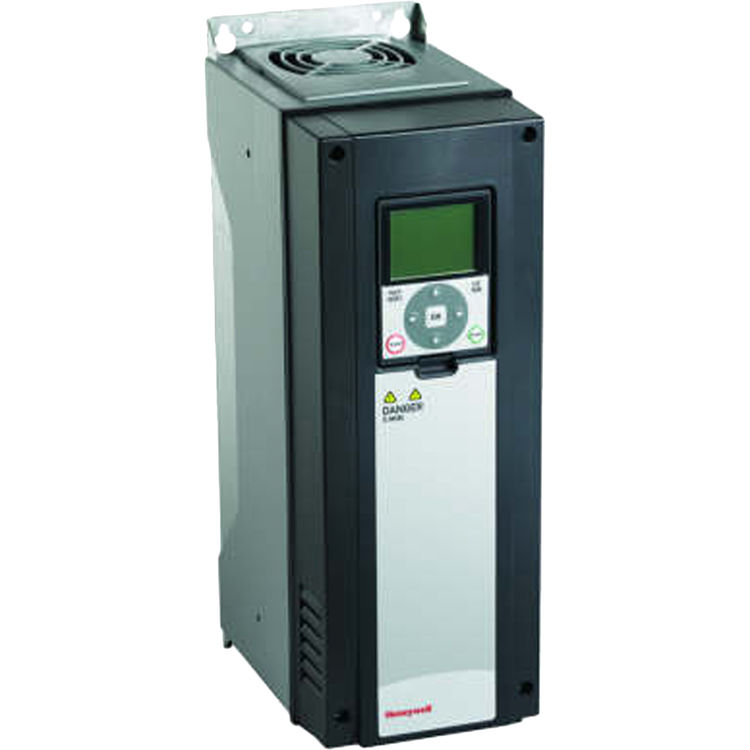

Honeywell HVFDSD3C0040G100 Honeywell HVFDSD3C0040G100/U SmartVFD HVAC. Includes; NEMA Enclosure

Honeywell HVFDSD3C0040G100/U SmartVFD HVAC. Includes; NEMA Enclosure

SKU: 374095

This product is not currently available for purchase.

About the Honeywell HVFDSD3C0040G100/U SmartVFD HVAC. Includes; NEMA Enclosure

Honeywell HVFDSD3C0040G100/U SmartVFD HVAC. Includes; NEMA Enclosure. The Honeywell SmartVFD HVAC and BYPASS are designed for commercial buildings to deliver the energy savings that building owners and managers need. Efficient install, and commissioning, in a full featured VFD.

Product: Bypass
  Variable Frequency Drive
  Smart Variable Frequency Drive
Manufacturer: Honeywell
Mpn # HVFDSD3C0040G100
Weight 62.25 lbs.
  • 5 x 12.9 x 7.5
  • 4 HP
  • 8A
  • 0 (4) - 20 mA, max 500 ohm
  • Drive alone
  • No
  • SmartVFD HVAC
  • EMC Filter
  • overload 1.5 x High overload current (1min/10min); overload 1.1 x Low overload current (1min/10min)
  • 545 x IN, 2 secs in every 20 sec period
  • 0.1 - 3000 sec
  • 127 x 327.66 x190.5
  • .1 - 3000 sec
  • 0 - 10 Vdc , 200K ohm
  • 0 (4) - 20 mA, 250 ohm differential
  • Open collector, max. load 48V/50mA
  • Maximum Load 10mA
  • ? 20%, max. load 50 mA
  • 4
  • Contact Customer Care
  • 0 Hz to 320 Hz
  • 460 Vac
  • 14 to 114 F
  • -10 to 50 C
  • NEMA 1
  • Max. switching load: 250Vac/2A or 250Vdc/0,4A
