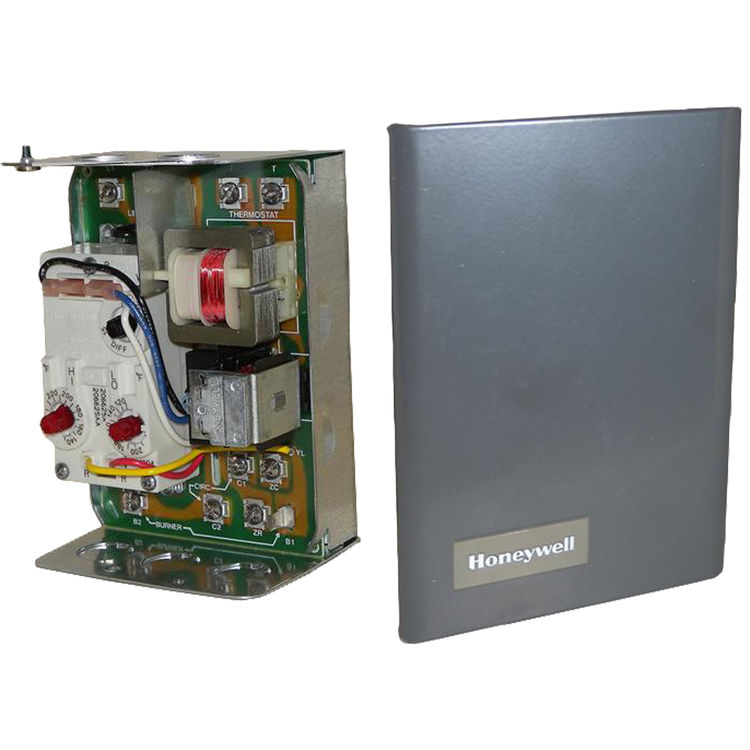

Honeywell L8124A1007 Triple Aquastat Relay

SKU: 374243
Save 63% · Retail: $526.70

In Stock and Ready to Ship!
More Buying Options

Ships From Price Qty
Massachusetts Warehouse
Ships in 1-3 Days
$193.46/ea 13
Order From Manufacturer
Available to Ship in 2-3 weeks

About the Honeywell L8124A1007

Honeywell L8124A1007 Triple Aquastat Relay w/High Limit. Honeywell Immersion type Aquastat controller and oil burner primary control provides high limit and low limit/circulator control for oil-fired hydronic heating systems.

Product Details

Product: Aquastat
Manufacturer: Honeywell
Style: Parts
Mpn # L8124A1007
Weight 8.50 lbs.

Product Features

  • Application- Circulator Control Low Limit Triple Aquastat Relay High Limit
  • Height: 6-1/8"
  • Width: 4-3/8"
  • Depth (Inches): 3-1/16"
  • Operating Humidity: 0% to 95% (non-condensing)
  • Max Ambient Temp (F)-265 F at Sensing Element 150 F at Switches
  • Mount: Vertical
  • Voltage: 120v
  • Max Pressure (PSI)- 200 psi on Immersion Well 100 psi Direct Immersion
  • Immersion-type controllers that combine high limit protection with low limit and circulator control in forced hydronic heating systems.
  • Provide multizone control by using a separate circulator and R845 Relay for each zone.
  • Temperature Range (F): 130F to 240F 110F to 220F
  • Include diaphragm powerhead and Micro Switch assembly that respond to temperature changes in boiler water
  • Mount directly to boiler.
  • Select models include large transformers and extra terminals for supplying power to low voltage zone valves.
  • Require 24 Vac thermostat with heat anticipator set at 0.2 A (plus current draw of gas valve on L8124E).
  • TRADELINE models include tube of heat conductive compound and range stops.
  • Electrical Rating: Burner: 7.4 A @ 120 Vac Burner: 3.7 A @ 240 Vac Circulator: 7.4 A @ 120 Vac
  • Electrical Ratings (ALR): Circulator: 44.4 A @ 120 Vac Max Temp Differential: 10F
  • Max Temp Differential: 10F
  • Differential:
  • Max Temp Differential: 25F
  • Min Temp Differential: 10F
  • Differential
