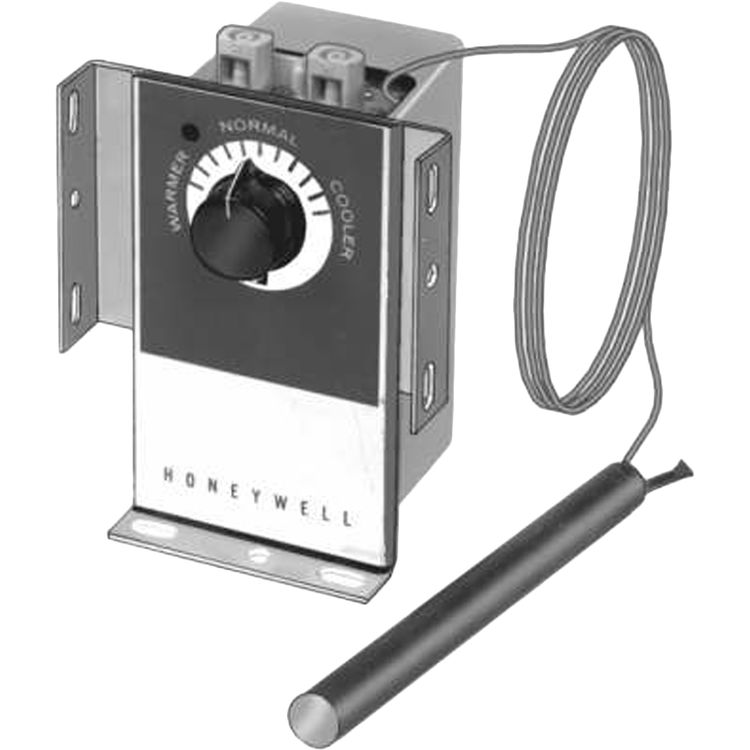

Honeywell LP916A1134 Honeywell LP916A1134/U Pneumatic Remote Bulb Thermostat

Honeywell LP916A1134/U Pneumatic Remote Bulb Thermostat

SKU: 374264

This product is not currently available for purchase.

About the Honeywell LP916A1134/U Pneumatic Remote Bulb Thermostat

Save on the Honeywell LP916A1134/U Pneumatic Remote Bulb Thermostat. The two-pipe, single temperature, unit mounted, remote bulb pneumatic thermostat used to provide proportional control of pneumatic valves and damper actuators in heating and air conditioning systems.

Manufacturer: Honeywell
Style: Pneumatic
Mpn # LP916A1134
Weight 7.35 lbs.
  • Induction and fan coil systems
  • In compartment of a unit ventilator
  • N/S
  • 19 C to 30 C
  • 65 F to 85 F
  • 150 F maximum
  • 66 C maximum
  • Bulb 3/8 x 7 in., capillary 36 in. (914 mm) long; Remote Bulb
  • 3.5 F
  • 2 C
  • Direct Acting
  • 0.011 scfm (5.2 mL/s) with 0.005 in. restriction
  • Barb fittings 1/4 in. (6 mm)
  • Single
  • 2
  • Warmer / Cooler
  • 4 3/4 in. high x 3 3/4 in. wide x 3 in. deep
  • 121 mm high x 95 mm wide x 76 mm deep
  • 25 psi
  • 170 kPa
  • 135 F maximum
  • 57 C maximum
  • Integral Mounting Bracket, (2) 316297-00021 Bulb Hangers and 304528A Bag Assembly (mounting hardware).
