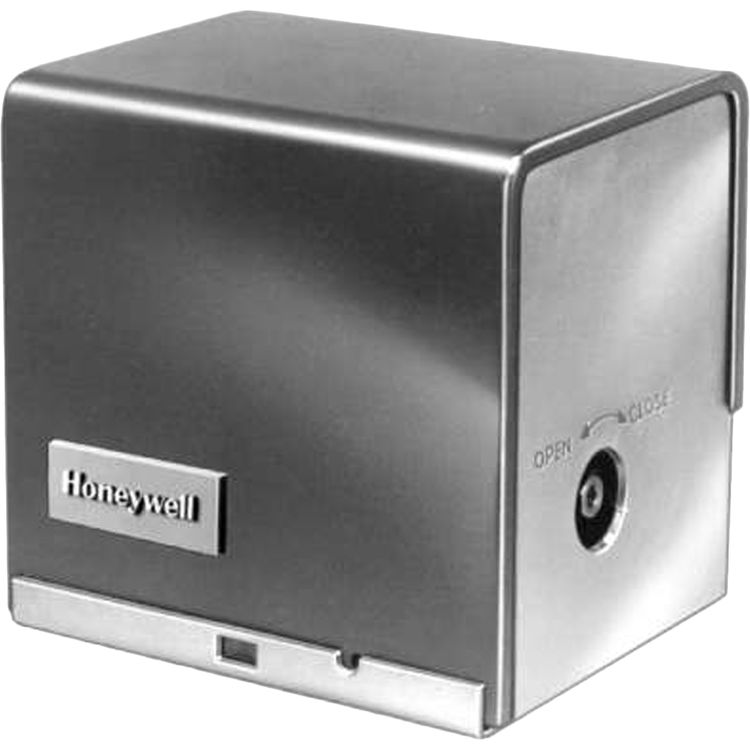

Honeywell M436A1116/U Two Position Foot Mounted Actuator

SKU: 374281

$224.08/ea
Save 62% · Retail: $582.21

See buying options below:



Ships From Price Qty
Massachusetts Warehouse
Ships in 1-3 Days
$224.08/ea 6
Order From Manufacturer
Available to Ship in 4-5 weeks
$224.08/ea

About the Honeywell M436A1116

Honeywell M436A1116/U Two Position Foot Mounted Actuator. Modutrol IV Motors are 2-Position spring-return Motors. They are used to operate dampers or Valves" applications where it is necessary or desirable to have the controlled element return to the starting Position" the event of power failure or interruption. (line- and low-Voltage per motor control)

Product Details

Product: Actuator
Manufacturer: Honeywell
Type: Foot Mount
Style: Parts
Mpn # M436A1116
Weight 0.55 lbs.

Product Features

  • 4 1/2 in. high x 4 5/8 in. wide x 3 3/4 in. deep
  • 5 to 95% RH
  • 120 Vac
  • 32 F to 125 F
  • 0 C to 52 C
  • Run Time Maximum-- 40 sec
  • 1
  • Angle of Rotation-- 75 degrees maximum
  • Two position, SPST
  • Spring Return
  • 20 lb-in.
  • 114 mm high x 118 mm wide x 95 mm deep
  • 2.3 Nm
  • Breakaway-- 30 lb-in.
  • Breakaway-- 3.3 Nm
  • Yes
  • Opening-- 30 sec
  • Maximum-- 25 sec
  • Opening-- 0.37 A, Holding-- 0.12 A
  • Opening-- 28 W, Holding-- 8.5 W
  • 2, Hexagonal shape
  • 4 lb 10 oz
  • 2.1 kg
  • Foot-mounted
  • 60 Hz
  • Listed File: E4436, Guide: XAPX
  • Tradeline
  • Screw terminals
