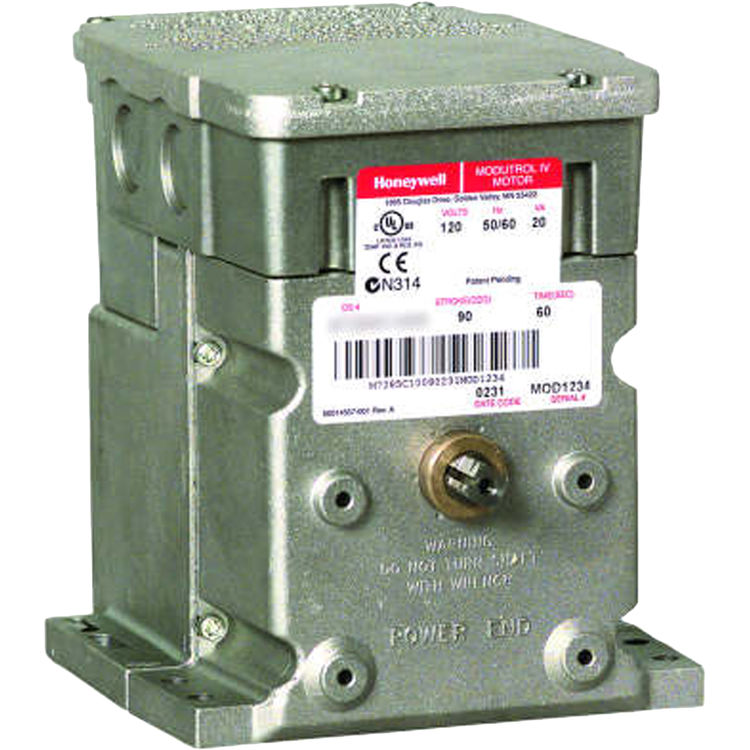

Honeywell M6184D1001/U Non-Spring Return, Floating Control, Actuator

SKU: 374287

$377.45/ea
Save 58% · Retail: $905.88

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$377.45/ea

About the Honeywell M6184D1001

Honeywell M6184D1001/U Non-Spring Return Actuator. The Honeywell Series 61 Modutrol IV Motors are non-spring return Floating control motors used with controllers that provide a switched spdt or Floating output to operate dampers or Valves.

Product Details

Product: Controller
Manufacturer: Honeywell
Style: Parts
Mpn # M6184D1001
Weight 8.20 lbs.

Product Features

  • Electric
  • Driving-- 15 VA
  • EN55011 (Emission) EN50082-2 (Immunity) 73/23/EEC (LVD)
  • -40 F to +150 F
  • -40 C to +60 C
  • 0
  • AFL - 120 Vac-- 7.2A; ALR- 120 Vac-- 43.2A; AFL - 240 Vac-- 3.6A; ALR- 240 Vac-- 21.6A
  • Adjustable; 90 to 160 degrees, Symmetrical
  • 0.375 in. Square
  • Floating
  • Non-Spring Return
  • 6 7/16 in. high x 5 1/2 in. wide x 7 5/16 in. deep
  • 75 lb-in.
  • 8.5 Nm
  • Yes
  • Dependent on wiring (normally closed)
  • 90 degrees
  • 15 - 30 sec
  • No
  • 10 mm Square
  • Dual-ended shaft
  • Either End-- 200 lbs.; Combined on both Shafts-- 300 lbs.
  • 164 mm high x 140 mm wide x 185 mm deep
  • None
  • 6.5 lb
  • Foot-mounted
  • 50 Hz; 60 Hz
  • Listed: File No. E4436, Guide No. XAPX for USA and Canada
  • Quick-connect terminals
  • 24V
