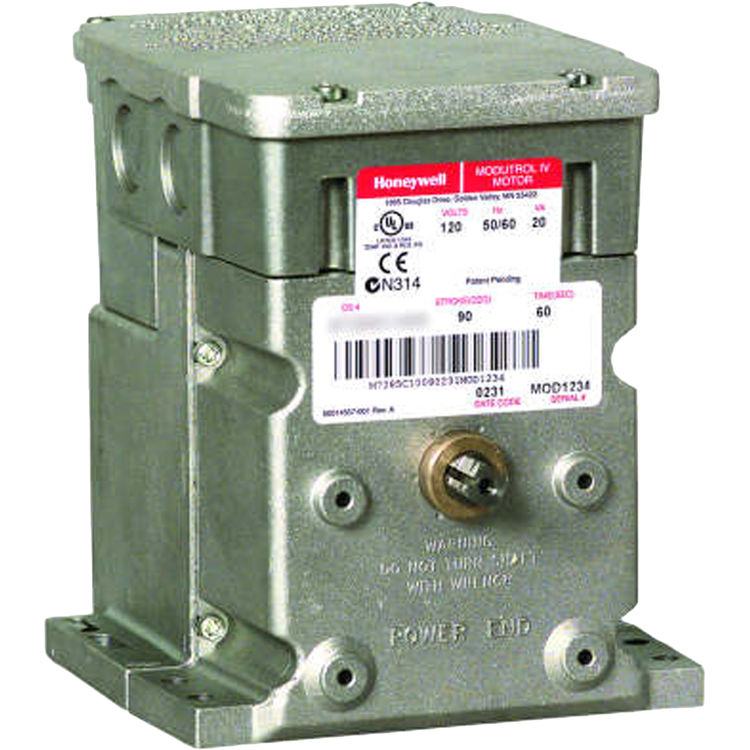

Honeywell M6284D1032-F/U Floating Control Motor

SKU: 374299

$444.27/ea
Save 61% · Retail: $1,135.75

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$444.27/ea

About the Honeywell M6284D1032-F

Honeywell M6284D1032-F/U Floating Control Motor. Honeywell Series 62 Modutrol IV Motors are Spring Return and Non-Spring Return Floating control motors used with controllers that provide a switched spdt or Floating output to operate dampers or Valves. These motors also have an internal electrically isolated feedback potentiometer that provides indication of the motor shaft Position. Replaces M6294D1008 Actuator.

Product Details

Product: Controller
Manufacturer: Honeywell
Faucet Part Feature: Motor
Style: Parts
Type:
Mpn # M6284D1032-F
Weight 7.50 lbs.

Product Features

  • Electric
  • Quick-connect terminals
  • 24V
  • Driving-- 16 VA
  • EN55011 (Emission) EN50082-2 (Immunity) 73/23/EEC (LVD)
  • -40 F to +150 F
  • -40 C to +60 C
  • 0
  • AFL - 120 Vac-- 7.2A; ALR- 120 Vac-- 43.2A; AFL - 240 Vac-- 3.6A; ALR- 240 Vac-- 21.6A
  • Adjustable; 90 to 160 degrees, Symmetrical
  • 0.375 in. Square
  • 7 7/16 in. high x 5 1/2 in. wide x 7 5/16 in. deep
  • Floating
  • Non-Spring Return
  • 150 lb-in.
  • 17 Nm
  • Yes
  • Dependent on wiring (normally closed)
  • 160 degrees
  • 30-60 sec
  • 10 mm Square
  • Dual-ended shaft
  • 165 mm high x 140 mm wide x 185 mm deep
  • Either End-- 200 lbs.; Combined on both Shafts-- 300 lbs.
  • None
  • 6.5 lb
  • Linear 10K feedback
  • Foot-mounted
  • 50 Hz; 60 Hz
  • Listed: File No. E4436, Guide No. XAPX for USA and Canada
  • Tradeline
