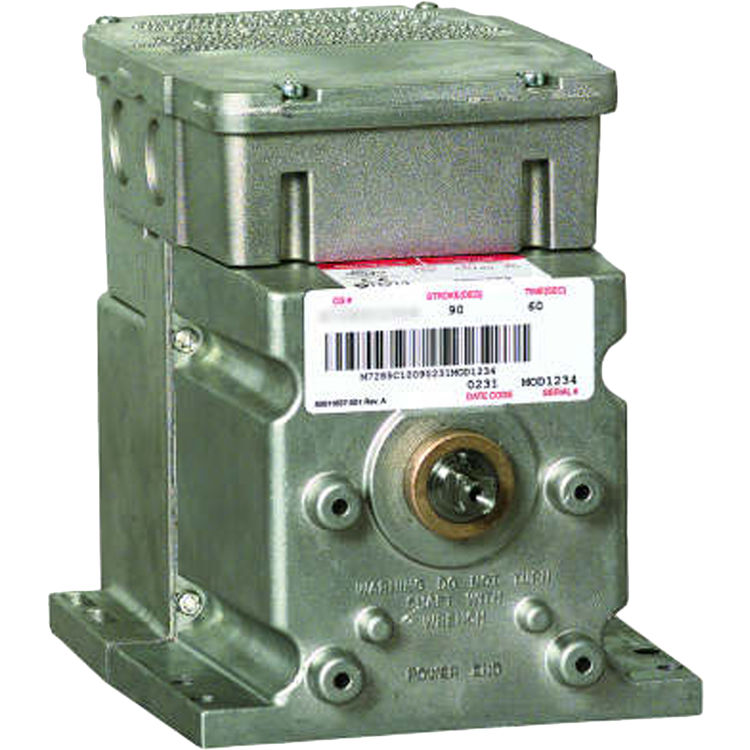

Honeywell M6285C1001-S/U Series 62 Modutrol IV Motor

SKU: 374304
Minimum Quantity: 1

$564.32/ea
Save 62% · Retail: $1,480.31

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$564.32/ea

About the Honeywell M6285C1001-S

Honeywell M6285C1001-S/U Series 62 Modutrol IV Motor. Series 62 Modutrol IV SR Motors are spring return and non-spring return motors (per motor type) used to control dampers and Valves. The motors accept a current or Voltage signal from an electronic controller to Position a damper or Valve at any point between open and closed.

Product Details

Manufacturer: Honeywell
Faucet Part Feature: Motor
Style: Parts
Type:
Mpn # M6285C1001-S
Weight 7.50 lbs.

Product Features

  • Electric
  • 24V
  • Driving-- 20 VA
  • EN55011 (Emission) EN50082-2 (Immunity) 73/23/EEC (LVD)
  • -40 F to +150 F
  • -40 C to +60 C
  • 2
  • AFL - 120 Vac-- 7.2A; ALR- 120 Vac-- 43.2A; AFL - 240 Vac-- 3.6A; ALR- 240 Vac-- 21.6A
  • Adjustable; 90 to 160 degrees, Asymmetrical
  • 0.375 in. Square
  • Floating
  • 6 7/16 in. high x 5 1/2 in. wide x 8 3/4 in. deep
  • Spring Return
  • 60 lb-in.
  • 6.8 Nm
  • Yes
  • Dependent on wiring (normally closed)
  • 160 degrees
  • 30-60 sec
  • 10 mm Square
  • Dual-ended shaft
  • Either End-- 200 lbs.; Combined on both Shafts-- 300 lbs.
  • 164 mm high x 140 mm wide x 222 mm deep
  • None
  • 8.5 lb
  • non-linear feedback, for slaving applications only
  • Foot-mounted
  • 50 Hz; 60 Hz
  • Listed: File No. E4436, Guide No. XAPX for USA and Canada
  • Quick-connect terminals
