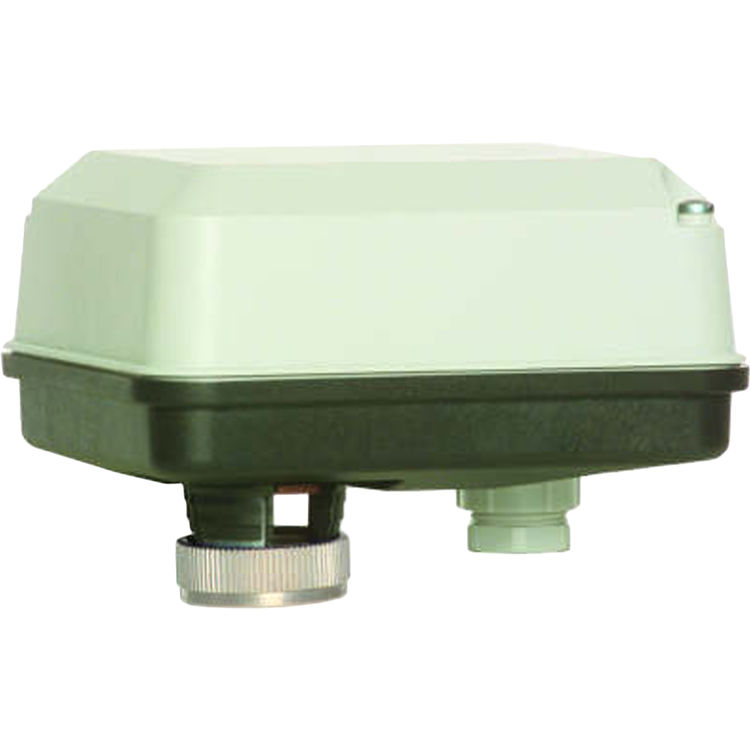

Honeywell M6435A3000 SRF Actuator

SKU: 374313

$151.24/ea
Save 57% · Retail: $353.67

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$151.24/ea

About the Honeywell M6435A3000

Honeywell M6435A3000 SRF Actuator. Cartridge Globe Valve Spring Return Actuators are small electric Actuators for individual room control that provide Floating or modulating control for Two-Way or Three-Way Valves.

Product Details

Product: Actuator
Manufacturer: Honeywell
Style: Parts
Mpn # M6435A3000
Weight 8.60 lbs.

Product Features

  • HVAC
  • Threads onto V58XX valve bonnet
  • 50 Hz; 60 Hz
  • Flammability Rating UL94V-5V
  • Screw terminals
  • 5 to 95% RH
  • 24 Vac +20%, -15%
  • Driving-- 10 VA
  • -40 F to +158 F
  • -40 C to +70 C
  • 32 F to 122 F
  • 3 3/16 in. high x 4 1/4 in. wide x 5 in. deep
  • 0 C to 50 C
  • IP54,Class I Insulation (24 Vac)
  • 0
  • 130 C Maximum
  • 266 F Maximum
  • Valve
  • SPDT; Two position; Floating
  • (Normally open for 1/2 in. and 3/4 in. V5852 and V5862. Normally closed for all other V58XX valves.); Spring Return, operator retracts up
  • 90 lbf
  • 400 N
  • 81 mm high x 108 mm wide x 126 mm deep
  • No
  • 1/4 in.
  • 6 mm
  • Threaded conduit connector
  • Driving @ 60 Hz-- 50 sec
  • Nominal-- 10 sec
  • None (use valve dust cap)
  • Stem up
  • 1/2 in. conduit hub
  • 1 inch to 1-1/2 inch V58XX Globe Valves
  • 1.1 lb
  • 0.5 kg
  • Low Maintenance Plastic Housing
  • High force for metal-seated valves
