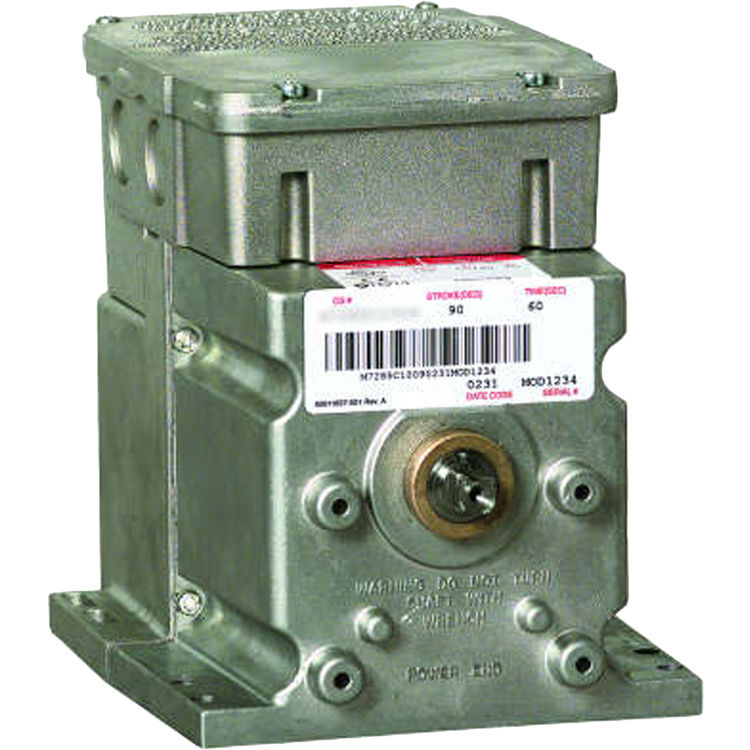

Honeywell M7286G1009/U SR Actuator

SKU: 374336
Minimum Quantity: 1

$600.07/ea
Save 61% · Retail: $1,544.62

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$600.07/ea

About the Honeywell M7286G1009

Honeywell M7286G1009/U SR Actuator. The Series 72 Modutrol IV Motors are non-spring return motors used to control dampers and Valves. These motors accept a Voltage signal from an electronic controller to Position a damper or Valve at any point between open and closed.

Product Details

Product: Actuator
Manufacturer: Honeywell
Style: Parts
Mpn # M7286G1009
Weight 5.40 lbs.

Product Features

  • Electric
  • Driving-- 15 VA
  • -40 F to +150 F
  • -40 C to +60 C
  • 0
  • AFL - 120 Vac-- 7.2A; ALR- 120 Vac-- 43.2A; AFL - 240 Vac-- 3.6A; ALR- 240 Vac-- 21.6A
  • Adjustable; 90 to 160 degrees, Asymmetrical
  • 0.375 in. Square
  • Modulating, 2-10 Vdc
  • Spring Return
  • 60 lb-in.
  • 6 7/16 in. high x 5 1/2 in. wide x 8 3/4 in. deep
  • 6.8 Nm
  • Yes
  • Counter-clockwise (as viewed from power end) (normally open)
  • 160 degrees
  • 30-60 sec
  • No
  • 10 mm Square
  • Dual-ended shaft
  • Either End-- 200 lbs.; Combined on both Shafts-- 300 lbs.
  • None
  • 164 mm high x 140 mm wide x 222 mm deep
  • 8.5 lb
  • Foot-mounted
  • 50 Hz; 60 Hz
  • Listed: File No. E4436, Guide No. XAPX for USA and Canada
  • Quick-connect terminals
  • 24V
