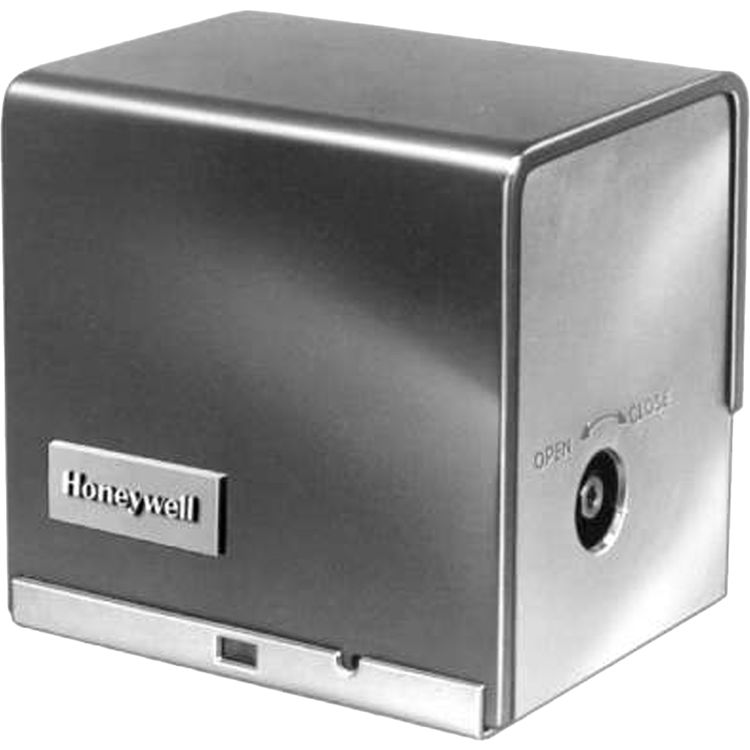

Honeywell M836A1042 Honeywell M836A1042/U Two Position SR Actuator

Honeywell M836A1042/U Two Position SR Actuator

SKU: 374350

This product is not currently available for purchase.

About the Honeywell M836A1042/U Two Position SR Actuator

Honeywell M836A1042/U Two Position SR Actuator. Modutrol IV Motors are 2-Position spring-return Motors. They are used to operate dampers or Valves" applications where it is necessary or desirable to have the controlled element return to the starting Position" the event of power failure or interruption. (line- and low-Voltage per motor control)

Product: Actuator
Manufacturer: Honeywell
Style: Parts
Mpn # M836A1042
Weight 1.48 lbs.
  • 4 1/2 in. high x 4 5/8 in. wide x 3 3/4 in. deep
  • 5 to 95% RH
  • 24 Vac
  • 32 F to 125 F
  • 0 C to 52 C
  • Run Time Maximum-- 40 sec
  • 1
  • Angle of Rotation-- 75 degrees maximum
  • Two position, SPST
  • Spring Return
  • 20 lb-in.
  • 114 mm high x 118 mm wide x 95 mm deep
  • 2.3 Nm
  • Breakaway-- 30 lb-in.
  • Breakaway-- 3.3 Nm
  • Yes
  • Opening-- 30 sec
  • Maximum-- 25 sec
  • Opening-- 1.85 A, Holding-- 0.6 A
  • Opening-- 28 W, Holding-- 8.5 W
  • 2, Hexagonal shape
  • 4 lb 10 oz
  • 2.1 kg
  • Foot-mounted
  • 60 Hz
  • Listed File: E4436, Guide: XAPX
  • Tradeline
  • Screw terminals
