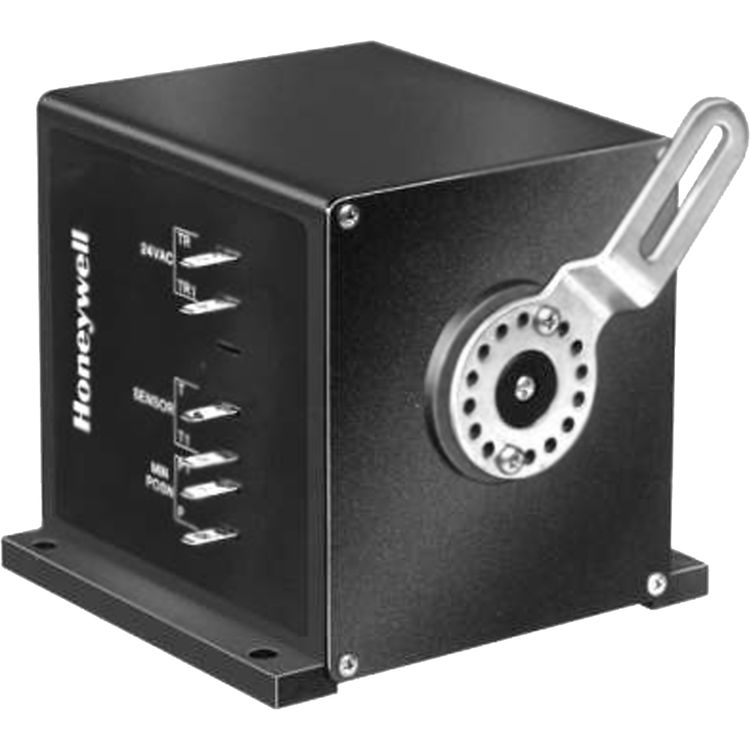

Honeywell M8415A1004/B 24 Vac Modulating Motor

SKU: 374353

$196.19/ea
Save 60% · Retail: $494.22

See buying options below:



Ships From Price Qty
Massachusetts Warehouse
Ships in 1-3 Days
$196.19/ea 3
Order From Manufacturer
Available to Ship in 4-5 weeks
$196.19/ea

About the Honeywell M8415A1004

Honeywell M8415A1004/B 24 Vac Modulating Motor. This 31 lb-in, Spring return damper Actuators provides Two-Position, three-Position, Floating, or modulating control of economizer systems, ventilation dampers and combustion air dampers used" residential or commercial HVAC equipment.

Product Details

Manufacturer: Honeywell
Faucet Part Feature: Motor
Style: Parts
Type:
Mpn # M8415A1004
Weight 1.65 lbs.

Product Features

  • 4 1/2 in. high x 5 in. wide x 5 3/16 in. deep
  • 5 to 95% RH, non-condensing
  • Driving-- 8 VA, Holding-- 3 VA
  • -25 F to +125 F
  • -32 C to +52 C
  • -30 F to +150 F
  • -34 C to +66 C
  • Minimum-- 90 sec, Run Time Maximum-- 90 sec
  • Fixed Stroke; Angle of Rotation-- 90 degrees maximum
  • Two position, SPST
  • Spring Return
  • 114 mm high x 127 mm wide x 132 mm deep
  • 25 lb-in.
  • 2.8 Nm
  • Breakaway-- 40 lb-in.
  • Breakaway-- 4.5 Nm
  • Yes
  • CCW
  • Opening-- 90 sec
  • Nominal-- 18 sec
  • No
  • 1
  • 3 lb
  • Power End-- 15 lbs max
  • UL94-5V plastic housing
  • Vibration-- V2 level
  • Foot-mounted
  • 50 Hz; 60 Hz
  • Listed File: E4436, Guide: XAPX
  • Quick-connect terminals
