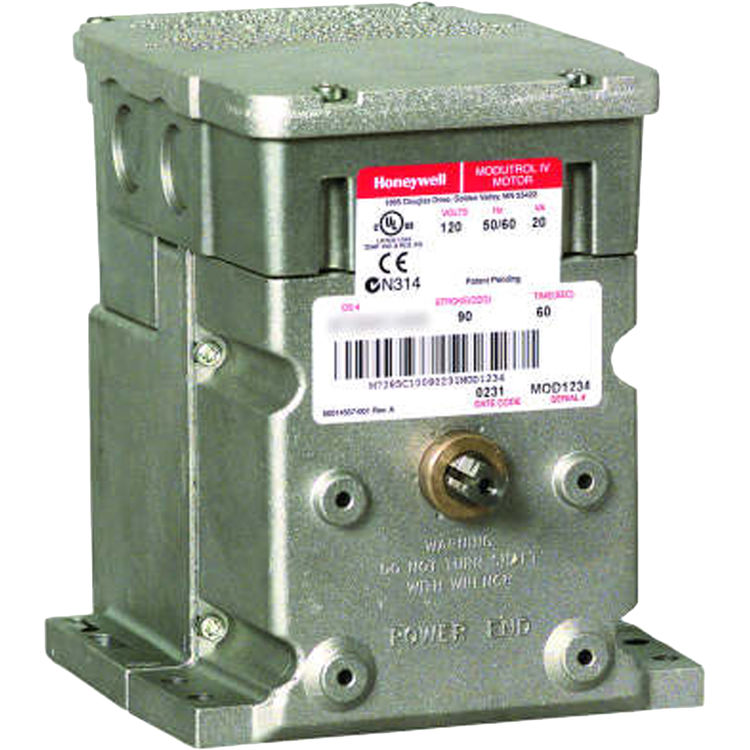

Honeywell M9184F1034/U 24V NSR Actuator

SKU: 374371

$636.36/ea
Save 62% · Retail: $1,655.27

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$636.36/ea

About the Honeywell M9184F1034

Honeywell M9184F1034/U 24V NSR Actuator. The Honeywell Series 90 Modutrol IV Motors are non-spring return modulating proportional control motors used with controllers that provide a Series 90 output to operate dampers or Valves.

Product Details

Product: Actuator
Manufacturer: Honeywell
Style: Parts
Mpn # M9184F1034
Weight 5.90 lbs.

Product Features

  • Electric
  • Driving-- 15 VA
  • EN55011 (Emission) EN50082-2 (Immunity) 73/23/EEC (LVD)
  • -40 F to +150 F
  • -40 C to +60 C
  • 2
  • AFL - 120 Vac-- 7.2A; ALR- 120 Vac-- 43.2A; AFL - 240 Vac-- 3.6A; ALR- 240 Vac-- 21.6A
  • Adjustable; 90 to 160 degrees, Symmetrical
  • 0.375 in. Square
  • Proportional, 135 ohm
  • Non-Spring Return
  • 6 7/16 in. high x 5 1/2 in. wide x 7 5/16 in. deep
  • 150 lb-in.
  • 17 Nm
  • Yes
  • Clockwise (as viewed from power end) (normally closed)
  • 90 degrees
  • 30-60 sec
  • No
  • 10 mm Square
  • Dual-ended shaft
  • Either End-- 200 lbs.; Combined on both Shafts-- 300 lbs.
  • 164 mm high x 140 mm wide x 185 mm deep
  • None
  • 6.5 lb
  • Foot-mounted
  • 50 Hz; 60 Hz
  • Listed: File No. E4436, Guide No. XAPX for USA and Canada
  • Quick-connect terminals
  • 24V
