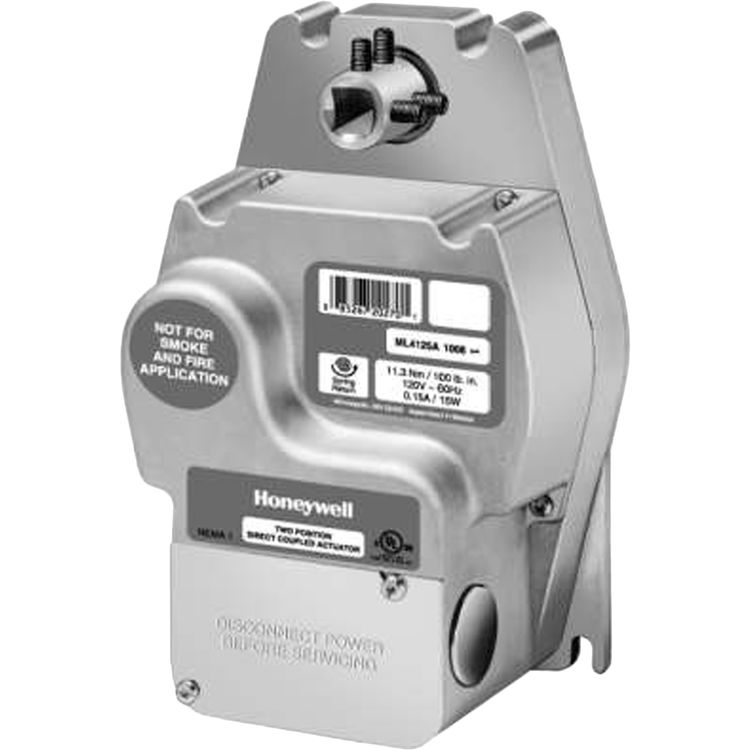

Honeywell ML4125B1007/U HVAC Fast-Acting, 2-Position Actuator

SKU: 374396
Minimum Quantity: 1

$194.62/ea
Save 59% · Retail: $469.77

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$194.62/ea

About the Honeywell ML4125B1007

Honeywell ML4125B1007/U HVAC Fast-Acting, 2-Position Actuator. Honeywell ML4125 are Fast-Acting, Two-Position Actuators. Actuator is spring return, Direct Coupled Actuators (DCA) and feature an integral junction box for on/off damper control.

Product Details

Product: Actuator
Manufacturer: Honeywell
Style: Parts
Mpn # ML4125B1007
Weight 3.55 lbs.

Product Features

  • HVAC
  • 60 Hz
  • UL873, Plenum Rated
  • Two color-coded leads
  • 5 to 95% RH, non-condensing
  • 120 Vac +10%, -15%
  • Driving-- 0.16A, 15W, Holding-- 0.10A, 5W
  • -40 F to +140 F
  • -18 C to +60 C
  • cUL C22.2 No. 24-93
  • -40 F to +130 F
  • 7.5 in high x 5.13 in wide x 3.32 in deep
  • -18 C to +55 C
  • NEMA 1
  • 0
  • Driving (dB(A) @ 1m)-- 65; Holding (dB(A) @ 1m)-- 20 (no audible noise)
  • Totally enclosed Micro Switch snap-acting switches operate on temperature rise to setpoint
  • 3/8 to 1/2 in. square or round
  • Damper
  • Two position; SPST
  • Spring Return
  • 100 lb-in.
  • 192 mm high x 129 mm wide x 84 mm deep
  • 11.3 Nm
  • Maximum Stall-- 240 lb-in.
  • Maximum Stall-- 27 Nm
  • Yes, 32003532-005
  • Driving @ 60 Hz-- 25 sec, 40 sec maximum
  • Maximum-- 25 sec
  • Aluminum Hub, two set screws
  • 10 to 13 mm square/round
  • CW
  • 16 in.
  • Ground Screw
  • 406 mm
  • 6 lb
  • 2.72 kg
  • Aluminum housing
  • Integral junction box with three 7/8 in. conduit openings (fittings not included)
  • Direct Coupled
