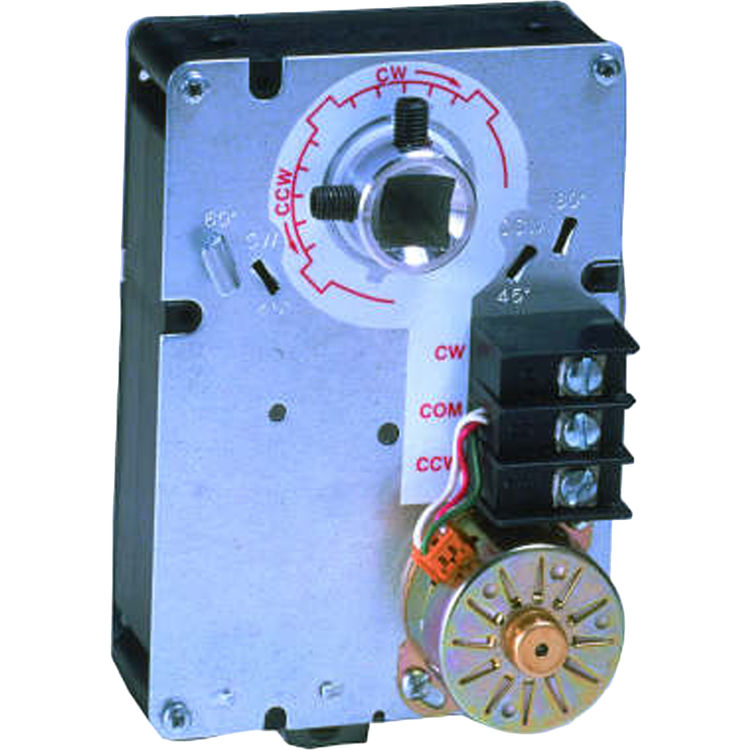

Honeywell ML6161A2025/U SPDT Floating Actuator

SKU: 374403

$60.37/ea
Save 63% · Retail: $162.36

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$60.37/ea

About the Honeywell ML6161A2025

This Honeywell ML6161A2025/U SPDT Floating Actuator. This Honeywell ML6161 control damper is used with variable air volume (VAV) terminal units and for mounting on ball Valves. Used with SPDT or Floating Thermostats, and building automation controls.

Product Details

Product: Actuator
Manufacturer: Honeywell
Style: Parts
Mpn # ML6161A2025
Weight 5.48 lbs.

Product Features

  • HVAC
  • UL873, Plenum Rated
  • Tradeline
  • Screw terminals
  • 5 to 95% RH, non-condensing
  • Totally enclosed Micro Switch snap-acting switch
  • Driving-- 1.8 VA
  • 20 F to 130 F
  • -18 C to +54 C
  • 89/336/ECC, 73/23/EEC
  • cUL C22.2 No. 24-93
  • 5.55 in high x 3.39 in wide x 2.52 in deep
  • 20 F to 125 F
  • -18 C to +50 C
  • N314
  • NEMA 1
  • 0
  • Driving (dB(A) @ 1m)-- 45
  • 90 degrees
  • 3/8 to 1/2 in. square or round
  • Damper
  • Floating; SPDT; On/Off
  • 141 mm high x 86 mm wide x 64 mm deep
  • Non-Spring Return
  • 35 lb-in.
  • 4 Nm
  • Maximum Stall-- 70 lb-in.
  • Maximum Stall-- 8 Nm
  • Yes, 201052B
  • By wiring
  • Mechanically limited at 45 or 60 degrees in CW or CCW directions
  • Driving @ 60 Hz-- 180 sec
  • With accessory
  • 4074ENY Bag Assembly
  • Aluminum Hub, two set screws
  • Declutch mechanism
  • 10 to 13 mm square/round
  • 1.5 lb
  • 0.68 kg
  • Steel plate and Plenum rated plastic
  • Direct Coupled
  • 50 Hz; 60 Hz
