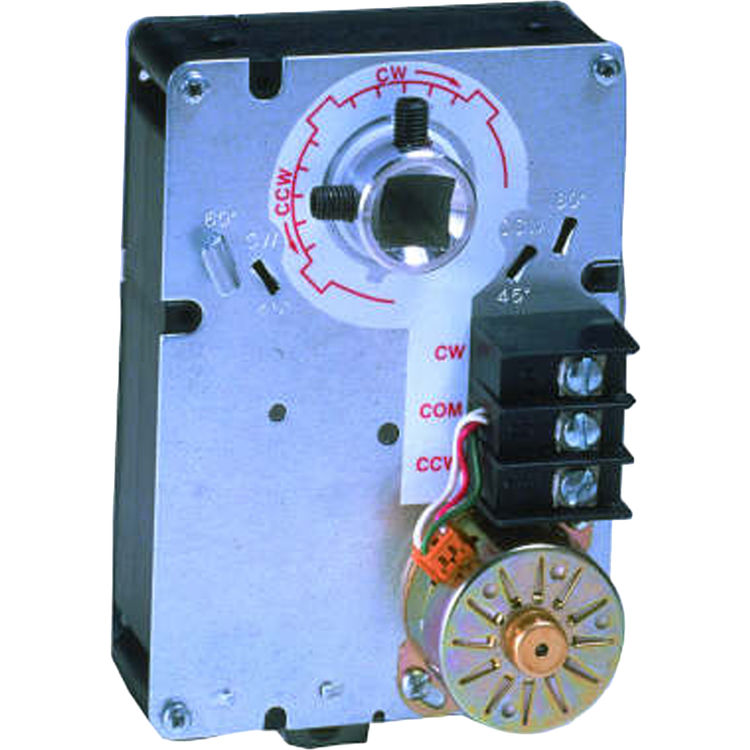

Honeywell ML6161B2024/B SPDT Floating Actuator

SKU: 374404
Minimum Quantity: 1

$54.10/ea
Save 62% · Retail: $143.01

See buying options below:



Ships From Price Qty
Massachusetts Warehouse
Ships in 1-3 Days
$54.10/ea 8
Order From Manufacturer
Available to Ship in 4-5 weeks
$54.10/ea

About the Honeywell ML6161B2024

This Honeywell ML6161B2024/B SPDT Floating Actuator. This Honeywell ML6161 control damper is used with variable air volume (VAV) terminal units and for mounting on ball Valves. Used with SPDT or Floating Thermostats, and building automation controls.

Product Details

Product: Actuator
Manufacturer: Honeywell
Style: Parts
Mpn # ML6161B2024
Weight 0.80 lbs.

Product Features

  • HVAC
  • UL873, Plenum Rated
  • Tradeline
  • Screw terminals
  • 5 to 95% RH, non-condensing
  • Fluid-filled element operates Micro Switch SPST snap-acting switch.
  • Driving-- 1.8 VA
  • 20 F to 130 F
  • -18 C to +54 C
  • 89/336/ECC, 73/23/EEC
  • cUL C22.2 No. 24-93
  • 5.55 in high x 3.39 in wide x 2.52 in deep
  • 20 F to 125 F
  • -18 C to +50 C
  • N314
  • NEMA 1
  • 0
  • Driving (dB(A) @ 1m)-- 45
  • 90 degrees
  • 3/8 to 1/2 in. square or round
  • Damper
  • Floating; SPDT; On/Off
  • 141 mm high x 86 mm wide x 64 mm deep
  • Non-Spring Return
  • 35 lb-in.
  • 4 Nm
  • Maximum Stall-- 70 lb-in.
  • Maximum Stall-- 8 Nm
  • Yes, 201052B
  • By wiring
  • Mechanically limited at 45 or 60 degrees in CW or CCW directions
  • Driving @ 60 Hz-- 90 sec
  • Aluminum Hub, two set screws
  • 4074ENY Bag Assembly
  • Declutch mechanism
  • 10 to 13 mm square/round
  • 1.5 lb
  • 0.68 kg
  • Steel plate and Plenum rated plastic
  • Direct Coupled
  • 50 Hz; 60 Hz
