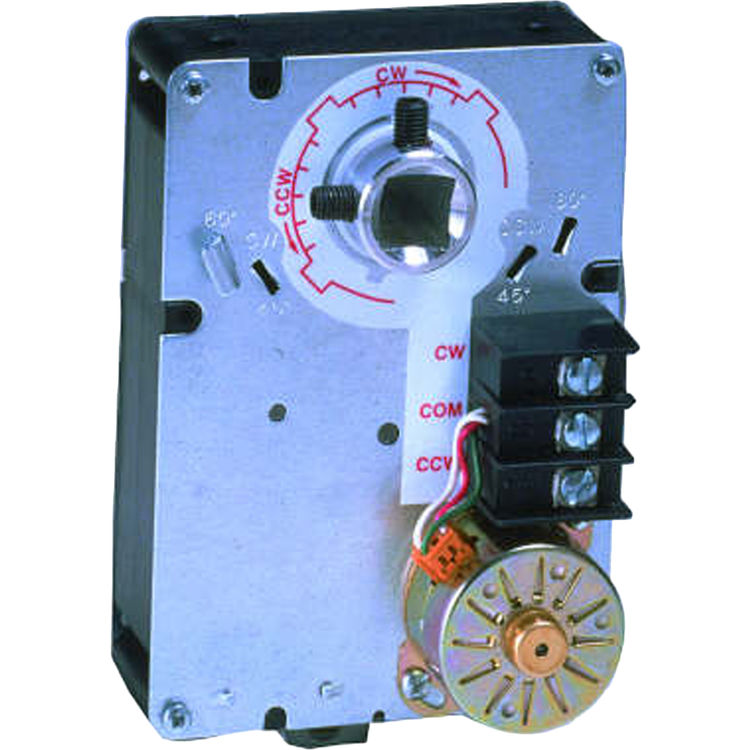

Honeywell ML6161B2032/B Floating SPDT Actuator

SKU: 374405

$75.38/ea
Save 49% · Retail: $149.07

See buying options below:



Ships From Price Qty
Massachusetts Warehouse
Ships in 1-3 Days
$75.38/ea 3
Order From Manufacturer
Available to Ship in 4-5 weeks
$75.38/ea

About the Honeywell ML6161B2032

This Honeywell ML6161B2032/B Floating SPDT Actuator. This Honeywell ML6161 control damper is used with variable air volume (VAV) terminal units and for mounting on ball Valves. Used with SPDT or Floating Thermostats, and building automation controls.

Product Details

Product: Actuator
Manufacturer: Honeywell
Style: Parts
Mpn # ML6161B2032
Weight 0.75 lbs.

Product Features

  • HVAC
  • UL873, Plenum Rated
  • Tradeline
  • Screw terminals
  • 5 to 95% RH, non-condensing
  • Special switch terminal provides three-wire hookup from Aquastat controller to gas valve
  • Driving-- 1.8 VA
  • 20 F to 130 F
  • -18 C to +54 C
  • 89/336/ECC, 73/23/EEC
  • cUL C22.2 No. 24-93
  • 5.55 in high x 3.39 in wide x 2.52 in deep
  • 20 F to 125 F
  • -18 C to +50 C
  • N314
  • NEMA 1
  • 0
  • Driving (dB(A) @ 1m)-- 45
  • 90 degrees
  • 3/8 to 1/2 in. square or round
  • Damper
  • Floating; SPDT; On/Off
  • 141 mm high x 86 mm wide x 64 mm deep
  • Non-Spring Return
  • 35 lb-in.
  • 4 Nm
  • Maximum Stall-- 70 lb-in.
  • Maximum Stall-- 8 Nm
  • Yes, 201052B
  • By wiring
  • Mechanically limited at 45 or 60 degrees in CW or CCW directions
  • Driving @ 60 Hz-- 420 sec
  • Aluminum Hub, two set screws
  • 4074ENY Bag Assembly
  • Declutch mechanism
  • 10 to 13 mm square/round
  • 1.5 lb
  • 0.68 kg
  • Steel plate and Plenum rated plastic
  • Direct Coupled
  • 50 Hz; 60 Hz
