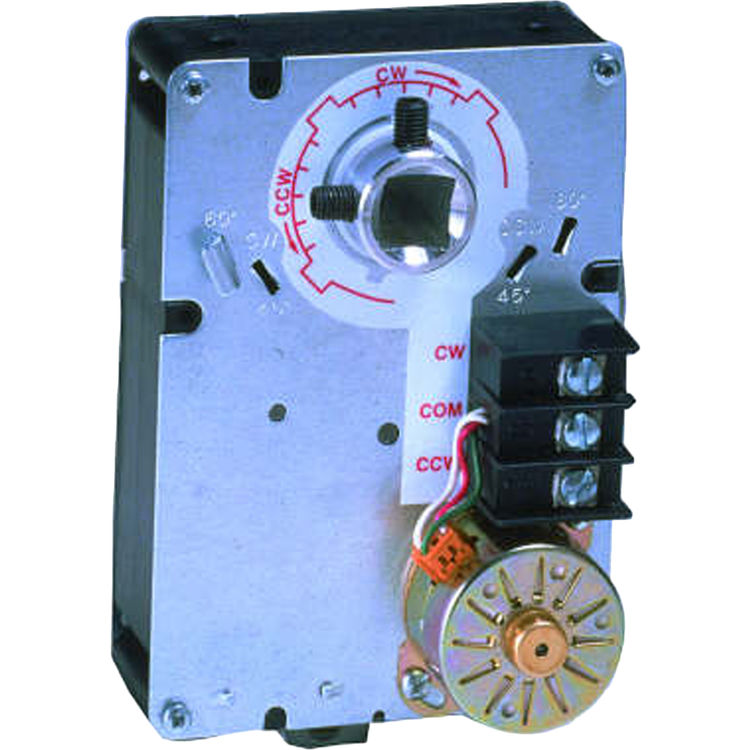

Honeywell ML6161B2073 Honeywell ML6161B2073/U SPDT Floating Actuator

Honeywell ML6161B2073/U SPDT Floating Actuator

SKU: 374406

This product is not currently available for purchase.

About the Honeywell ML6161B2073/U SPDT Floating Actuator

This Honeywell ML6161B2073/U SPDT Floating Actuator. This Honeywell ML6161 control damper is used with variable air volume (VAV) terminal units and for mounting on ball Valves. Used with SPDT or Floating Thermostats, and building automation controls.

Product: Float
  Actuator
Manufacturer: Honeywell
Style: Parts
Mpn # ML6161B2073
Weight 2.95 lbs.
  • HVAC
  • UL873, Plenum Rated
  • Tradeline
  • Screw terminals
  • 5 to 95% RH, non-condensing
  • Fluid-filled element operates Micro Switch SPST snap-acting switch.
  • Driving-- 1.8 VA
  • 20 F to 130 F
  • -18 C to +54 C
  • 89/336/ECC, 73/23/EEC
  • cUL C22.2 No. 24-93
  • 5.55 in high x 3.39 in wide x 2.52 in deep
  • 20 F to 125 F
  • -18 C to +50 C
  • N314
  • NEMA 1
  • 0
  • Driving (dB(A) @ 1m)-- 45
  • 90 degrees
  • 3/8 to 1/2 in. square or round
  • Damper
  • Floating; SPDT; On/Off
  • 141 mm high x 86 mm wide x 64 mm deep
  • Non-Spring Return
  • 35 lb-in.
  • 4 Nm
  • Maximum Stall-- 70 lb-in.
  • Maximum Stall-- 8 Nm
  • Yes, 201052B
  • By wiring
  • Mechanically limited at 45 or 60 degrees in CW or CCW directions
  • Driving @ 60 Hz-- 180 sec
  • Aluminum Hub, two set screws
  • 4074ENY Bag Assembly
  • Declutch mechanism
  • 10 to 13 mm square/round
  • 1.5 lb
  • 0.68 kg
  • Steel plate and Plenum rated plastic
  • Direct Coupled
  • 50 Hz; 60 Hz
