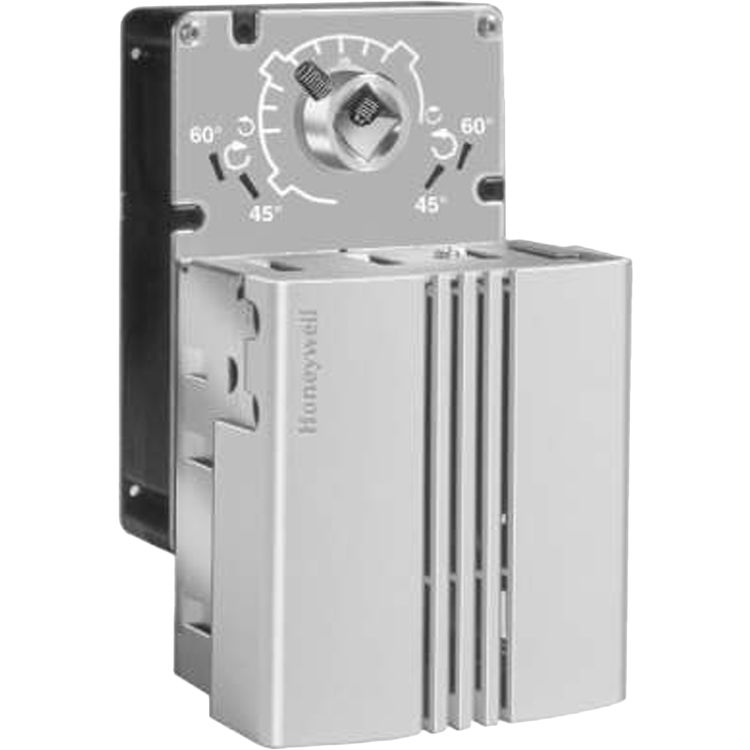

Honeywell ML6161C2007/U SPDT Floating Actuator

SKU: 374407

$69.99/ea
Save 58% · Retail: $168.20

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$69.99/ea

About the Honeywell ML6161C2007

This Honeywell ML6161C2007/U SPDT Floating Actuator. This Honeywell ML6161 control damper is used with variable air volume (VAV) terminal units and for mounting on ball Valves. Used with SPDT or Floating Thermostats, and building automation controls.

Product Details

Product: Actuator
Manufacturer: Honeywell
Style: Parts
Mpn # ML6161C2007
Weight 1.20 lbs.

Product Features

  • HVAC
  • 50 Hz; 60 Hz
  • UL873, Plenum Rated
  • Screw terminals
  • 5 to 95% RH, non-condensing
  • Special switch terminal provides three-wire hookup from Aquastat controller to gas valve
  • Driving-- 1.8 VA
  • 20 F to 130 F
  • -18 C to +54 C
  • cUL C22.2 No. 24-93
  • 20 F to 125 F
  • 5.86 in high x 3.63 in wide x 3.74 in deep
  • -18 C to +50 C
  • NEMA 1
  • 0
  • Driving (dB(A) @ 1m)-- 45
  • 90 degrees
  • 3/8 to 1/2 in. square or round
  • Damper
  • Floating; SPDT; On/Off
  • Non-Spring Return
  • 35 lb-in.
  • 149 mm high x 92 mm wide x 95 mm deep
  • 4 Nm
  • Maximum Stall-- 70 lb-in.
  • Maximum Stall-- 8 Nm
  • Yes, 201052B
  • By wiring
  • Mechanically limited at 45 or 60 degrees in CW or CCW directions
  • Driving @ 60 Hz-- 90 sec
  • With accessory
  • Aluminum Hub, two set screws
  • Declutch mechanism
  • 4074ENY Bag Assembly
  • 10 to 13 mm square/round
  • 2 lb
  • 0.91 kg
  • Steel plate and Plenum rated plastic
  • Includes two 5/8 x 7/8 in. double knock-out conduit openings
  • Direct Coupled
