Honeywell ML6161C2015 Honeywell ML6161C2015/U SPDT Floating Actuator

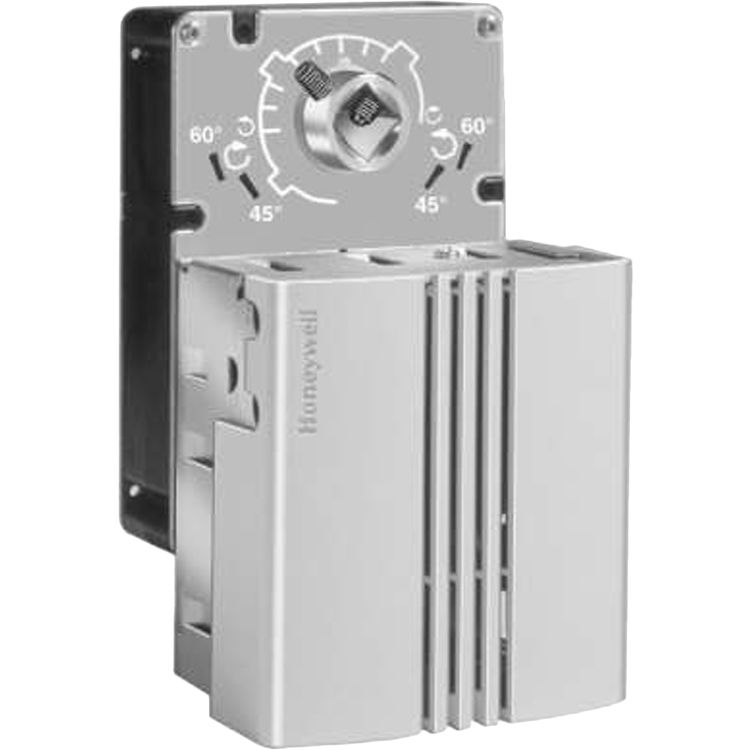

Honeywell ML6161C2015/U SPDT Floating Actuator

SKU: 374408

This product is not currently available for purchase.

About the Honeywell ML6161C2015/U SPDT Floating Actuator

This Honeywell ML6161C2015/U SPDT Floating Actuator. This Honeywell ML6161 control damper is used with variable air volume (VAV) terminal units and for mounting on ball Valves. Used with SPDT or Floating Thermostats, and building automation controls.

Product: Float
  Actuator
Manufacturer: Honeywell
Style: Parts
Mpn # ML6161C2015
Weight 0.85 lbs.
  • HVAC
  • 50 Hz; 60 Hz
  • UL873, Plenum Rated
  • Screw terminals
  • 5 to 95% RH, non-condensing
  • Include diaphragm powerhead and Micro Switch assembly that respond to temperature changes in boiler water
  • Driving-- 1.8 VA
  • 20 F to 130 F
  • -18 C to +54 C
  • cUL C22.2 No. 24-93
  • 20 F to 125 F
  • 5.86 in high x 3.63 in wide x 3.74 in deep
  • -18 C to +50 C
  • NEMA 1
  • 0
  • Driving (dB(A) @ 1m)-- 45
  • 90 degrees
  • 3/8 to 1/2 in. square or round
  • Damper
  • Floating; SPDT; On/Off
  • Non-Spring Return
  • 35 lb-in.
  • 149 mm high x 92 mm wide x 95 mm deep
  • 4 Nm
  • Maximum Stall-- 70 lb-in.
  • Maximum Stall-- 8 Nm
  • Yes, 201052B
  • By wiring
  • Mechanically limited at 45 or 60 degrees in CW or CCW directions
  • Driving @ 60 Hz-- 420 sec
  • With accessory
  • Aluminum Hub, two set screws
  • Declutch mechanism
  • 4074ENY Bag Assembly
  • 10 to 13 mm square/round
  • 2 lb
  • 0.91 kg
  • Steel plate and Plenum rated plastic
  • Includes two 5/8 x 7/8 in. double knock-out conduit openings
  • Direct Coupled
