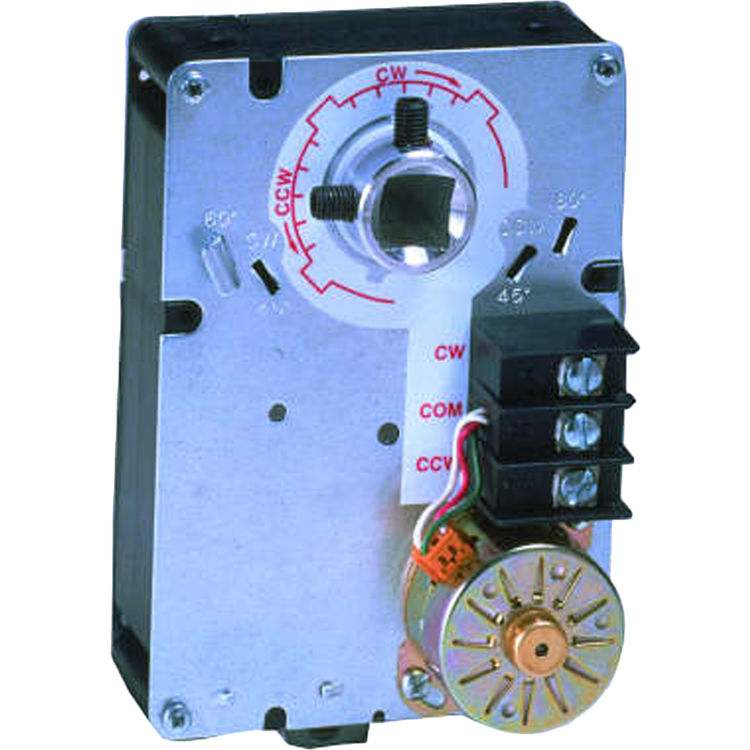

Honeywell ML6174A2002/U SPDT Floating Actuator

SKU: 374410

$83.95/ea
Save 62% · Retail: $220.88

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$83.95/ea

About the Honeywell ML6174A2002

Honeywell ML6174A2002/U SPDT Floating Actuator. The ML6174 control damper is used with variable air volume (VAV) terminal units and for mounting on ball Valves; suitable for use with SPDT or Floating Thermostats or building automation controls.

Product Details

Product: Actuator
Manufacturer: Honeywell
Style: Parts
Mpn # ML6174A2002
Weight 1.40 lbs.

Product Features

  • HVAC
  • UL873, Plenum Rated
  • Tradeline
  • Screw terminals
  • 5 to 95% RH, non-condensing
  • Include diaphragm powerhead and Micro Switch assembly that respond to temperature changes in boiler water
  • Driving-- 2.4 VA
  • 20 F to 130 F
  • -18 C to +54 C
  • cUL C22.2 No. 24-93
  • 20 F to 125 F
  • 5.55 in high x 3.39 in wide x 2.52 in deep
  • -18 C to +50 C
  • NEMA 1
  • 0
  • Driving (dB(A) @ 1m)-- 45
  • 90 degrees
  • 3/8 to 1/2 in. square or round
  • Damper
  • Floating; SPDT; On/Off
  • Non-Spring Return
  • 70 lb-in.
  • 141 mm high x 86 mm wide x 64 mm deep
  • 8 Nm
  • Maximum Stall-- 130 lb-in.
  • Maximum Stall-- 15 Nm
  • Yes, 201052B
  • By wiring
  • Mechanically limited at 45 or 60 degrees in CW or CCW directions
  • Driving @ 60 Hz-- 90 sec
  • With accessory
  • Aluminum Hub, two set screws
  • Declutch mechanism
  • 4074ENY Bag Assembly
  • 10 to 13 mm square/round
  • 1.5 lb
  • 0.68 kg
  • Steel plate and Plenum rated plastic
  • Direct Coupled
  • 50 Hz; 60 Hz
