Honeywell ML6425A3022 Valve Actuator

SKU: 374418
Minimum Quantity: 1

$317.55/ea
Save 58% · Retail: $762.11

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$317.55/ea

About the Honeywell ML6425A3022

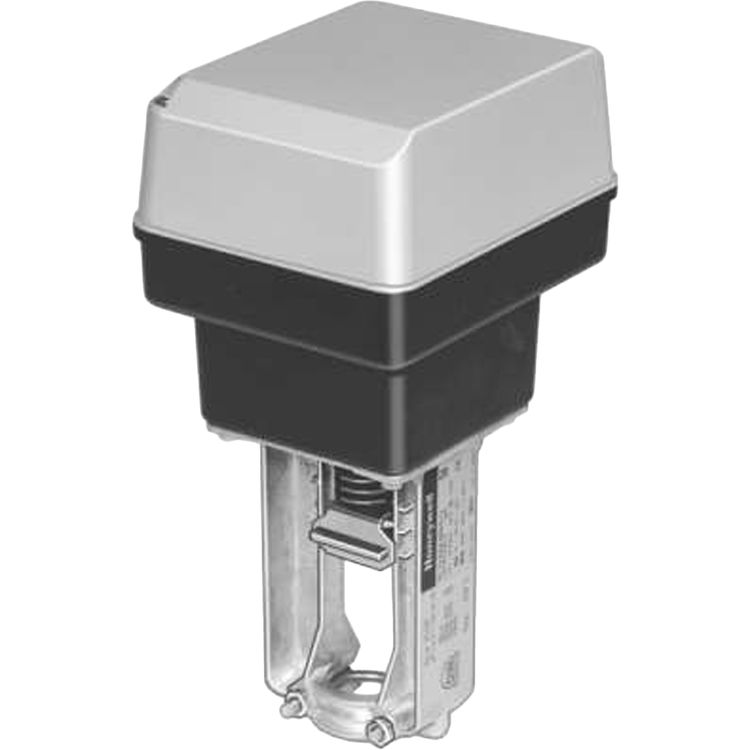

Honeywell ML6425A3022 Valve Actuator. Honeywell ML6425 Stem, Direct-Coupled Valve Actuator with 135 lbf rated force. They operate standard Honeywell Valves" HVAC applications.

Product Details

Product: Actuator
Manufacturer: Honeywell
Mpn # ML6425A3022
Weight 2.35 lbs.

Product Features

  • HVAC
  • Flammability Rating UL94V-5V
  • Screw terminals
  • 5 to 95% RH
  • 24 Vac
  • Driving-- 11 VA
  • -40 F to +158 F
  • -40 C to +70 C
  • Recognized
  • 14 F to 122 F
  • -10 C to +50 C
  • 11 1/4 in. high x 5 5/16 in. wide x 6 5/16 in. deep
  • Class I Insulation (24 Vac),IP54
  • 0
  • 150 C Maximum
  • 300 F Maximum
  • Valve
  • Two position; Floating; SPDT
  • Stem down on power failure
  • 135 lbf
  • 600 N
  • Yes
  • 284 mm high x 135 mm wide x 161 mm deep
  • 3/4 in.
  • 20 mm
  • Conduit connector and one knockout on actuator case
  • Driving @ 60 Hz-- 90 sec
  • Nominal-- 12 sec
  • Manual override winding
  • 1/2 in. conduit hub; 1/2 in. flexible conduit adapter
  • 5.1 lb
  • 2.3 kg
  • ABS-FR Plastic, aluminum yoke
  • Directly on V5011/V5013 Globe Valves and VGF Flanged Globe Valves (3/4" or 20mm stroke)
  • 50 Hz; 60 Hz
