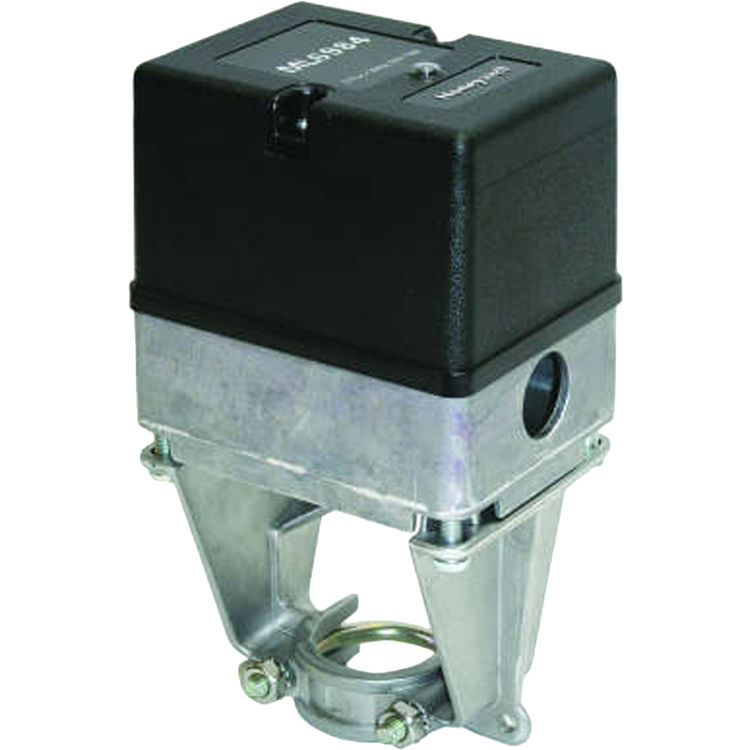

Honeywell ML6984A4000/U NSR Valve Actuator

SKU: 374420

$173.48/ea
Save 61% · Retail: $440.10

See buying options below:




Ships From Price Qty
Massachusetts Warehouse
Ships in 1-3 Days
$176.29/ea 19
Order From Manufacturer
Available to Ship in 4-5 weeks
$173.48/ea

About the Honeywell ML6984A4000

Honeywell ML6984A4000/U NSR Valve Actuator. Honeywell ML6984 self-contained, self-adjusting linear motorized linkage mounts Directly on V5011 Two-Way or V5013 Three-Way Valves. Provides up to 25mm of linear stem travel. Use with low-Voltage three-wire SPDT Series 20 (on-off), Series 60 electromechanical or electronic output controllers.

Product Details

Product: Actuator
Manufacturer: Honeywell
Mpn # ML6984A4000
Weight 2.10 lbs.

Product Features

  • HVAC
  • Screws onto 1/4-28 UNF threaded valve stem
  • 50 Hz; 60 Hz
  • 15 to 95% RH at 104 F (40 C)
  • 28 Vdc; 24 Vac
  • Driving-- 6 VA, Holding-- 12 VA
  • -40 F to +150 F
  • -40 C to + 65 C
  • 32 F to 130 F
  • 0 C to 50 C
  • 24 Vac
  • 6 13/16 in. high x 4 in. wide x 3 3/16 in. deep
  • NEMA 3R,NEMA 3R, IP54 (mounted in vertical position)
  • 0
  • 150 C Maximum
  • 300 F Maximum
  • Valve
  • SPDT; Two position; Floating
  • Stays in place
  • 160 lbf
  • 710 N
  • SPDT w/ 272630D
  • 173 mm high x 102 mm wide x 82 mm deep
  • 272630D
  • 1/2 to 1 in.
  • 13 to 25 mm
  • 7/8 in. hole for 1/2 in. conduit
  • Driving @ 60 Hz-- 63 at 3/4 in stroke
  • Position feedback available w/ 272630D; 2-10 Vdc
  • None
  • Screw terminals
  • V5011/13, VGF21, and VGF22 up to 3 in.; V5045 w/ 272629A
  • 2.2 lb
  • 1 kg
  • UV-stabilized plastic cover, aluminum base & yoke
  • 3 or 5-wire operation.; (3-wire required for XL10 controllers)
