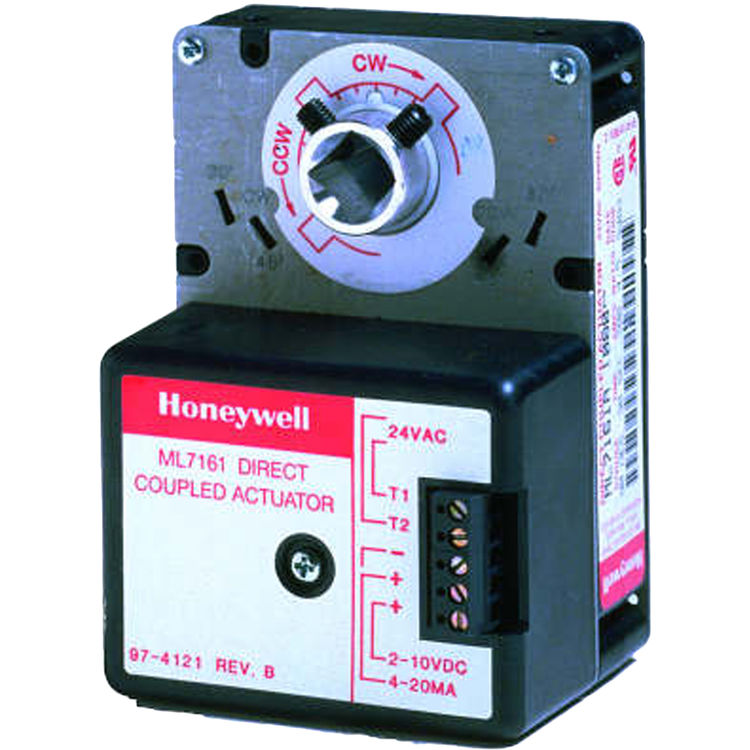

Honeywell ML7161A2008/B 2-10 Vdc, 4-20 mA 24 Vac Actuator

SKU: 374421

$95.36/ea
Save 63% · Retail: $258.18

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$95.36/ea

About the Honeywell ML7161A2008

Honeywell ML7161A2008/B 2-10 Vdc, 4-20 mA 24 Vac Actuator. Honeywell ML7161 controls dampers" HVAC applications and is Mounted on ball Valves. Use with modulating (2-10 Vdc) Thermostats or building automation controls.

Product Details

Product: Actuator
Manufacturer: Honeywell
Style: Parts
Mpn # ML7161A2008
Weight 6.45 lbs.

Product Features

  • HVAC
  • UL873, Plenum Rated
  • Screw terminals
  • 5 to 95% RH, non-condensing
  • #NAME?
  • Driving-- 5.4 VA
  • 20 F to 130 F
  • -18 C to +54 C
  • cUL C22.2 No. 24-93
  • 20 F to 125 F
  • -18 C to +50 C
  • 5.55 in high x 3.39 in wide x 3.0 in deep
  • NEMA 1
  • 0
  • Driving (dB(A) @ 1m)-- 45
  • 90 degrees
  • 3/8 to 1/2 in. square or round
  • Damper
  • 2-10 Vdc; 4-20 mA
  • Non-Spring Return
  • 35 lb-in.
  • 4 Nm
  • 141 mm high x 86 mm wide x 76 mm deep
  • Maximum Stall-- 70 lb-in.
  • Maximum Stall-- 8 Nm
  • Yes, 201052B
  • By switch
  • Mechanically limited at 45 or 60 degrees in CW or CCW directions
  • Driving @ 60 Hz-- 90 sec
  • Aluminum Hub, two set screws
  • Declutch mechanism
  • 10 to 13 mm square/round
  • 45K ohm (2-10 Vdc signal), 536 ohm (4-20 mA signal)
  • 4074ENY Bag Assembly
  • 2.4 lb
  • 1.1 kg
  • Steel plate and Plenum rated plastic
  • Direct Coupled
  • 50 Hz; 60 Hz
