Honeywell ML7984A4009 Honeywell ML7984A4009/U NSR Valve Actuator

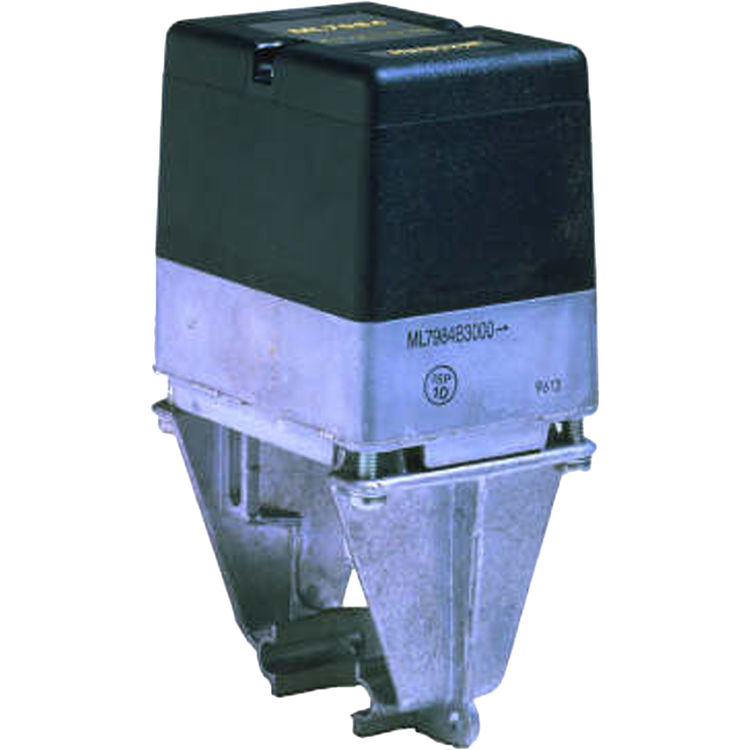

Honeywell ML7984A4009/U NSR Valve Actuator

SKU: 374429

This product is not currently available for purchase.

About the Honeywell ML7984A4009/U NSR Valve Actuator

Honeywell ML7984A4009/U NSR Valve Actuator. Honeywell ML7984 linkage mounts onto Two-Way or Three-Way Valves and provides up to 25 mm of linear travel (stem lift). Use with Series 70 2-10 Vdc, 4-20 mA; Series 90 135 ohm; and Super Mod modulating signal controllers.

Product: Actuator
Manufacturer: Honeywell
Mpn # ML7984A4009
Weight 3.80 lbs.
  • HVAC
  • Screws onto 1/4-28 UNF threaded valve stem
  • 50 Hz; 60 Hz
  • 15 to 95% RH at 104 F (40 C)
  • 28 Vdc; 24 Vac
  • Driving-- 6 VA, Holding-- 12 VA
  • -40 F to +150 F
  • -40 C to + 65 C
  • 32 F to 130 F
  • 0 C to 55 C
  • 24 Vac
  • 6 13/16 in. high x 4 in. wide x 3 3/16 in. deep
  • NEMA 3R, IP54 (mounted in vertical position),NEMA 3R
  • 0
  • Valve
  • 2 to 10 Vdc; SuperMod; 135 ohm potentiometer; 4 to 20 mA
  • Stays in place
  • 160 lbf
  • 710 N
  • SPDT w/ 272630D
  • 272630D
  • 1/2 to 1 in.
  • 173 mm high x 102 mm wide x 82 mm deep
  • 13 to 25 mm
  • 7/8 in. hole for 1/2 in. conduit
  • Driving @ 60 Hz-- 63 at 3/4 in stroke
  • Position feedback available w/ 272630D; 2-10 Vdc
  • None
  • Voltage - 20 Kohm, Current - 237ohm
  • Screw terminals
  • V5011/13, VGF21, and VGF22 up to 3 in.; V5045 w/ 272629A
  • 2.2 lb
  • 1 kg
  • UV-stabilized plastic cover, aluminum base & yoke
  • Direct/Reverse Acting Switch
