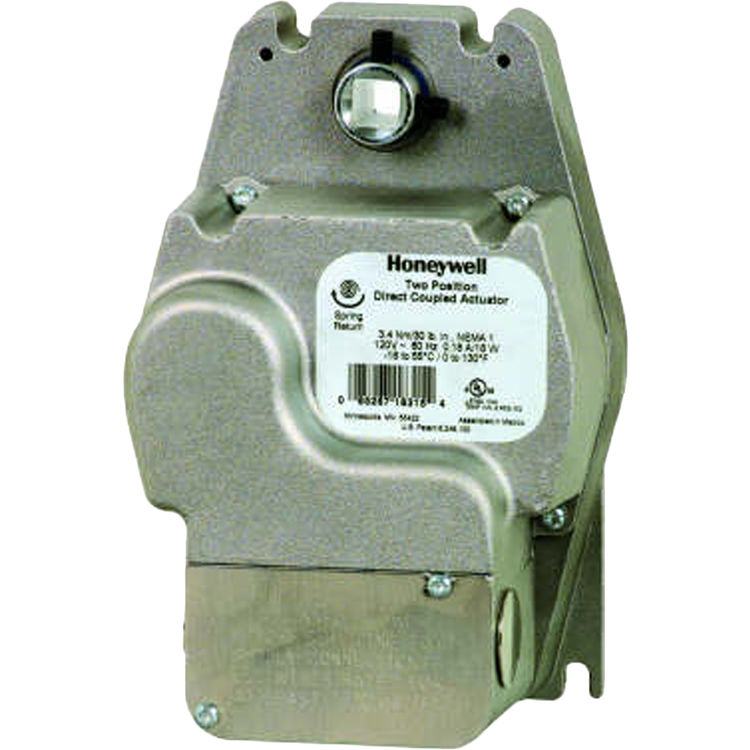

Honeywell ML8115A1005/B Fast-Acting, Two-Position Actuator

SKU: 374431

$145.74/ea
Save 59% · Retail: $351.27

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$145.74/ea

About the Honeywell ML8115A1005

Honeywell ML8115A1005/B Fast-Acting, Two-Position Actuator. Honeywell ML8115 Fast-Acting, Two-Position Actuator that provides damper control by accepting on/off signal from a single-pole, single-throw controller. Built to operate smoke control systems requiring UL555S ratings up to 350F.

Product Details

Product: Actuator
Manufacturer: Honeywell
Style: Parts
Mpn # ML8115A1005
Weight 5.50 lbs.

Product Features

  • Fire and Smoke
  • UL873, Plenum Rated
  • Two color-coded leads
  • 5 to 95% RH, non-condensing
  • 121 Vac
  • Driving-- 16 VA, Holding-- 8 VA
  • -40 F to 140 F
  • -40 C to +60 C
  • 89/336/ECC, 73/23/EEC
  • cUL C22.2 No. 24-93
  • 0 F to +130 F
  • 7.5 in high x 5.13 in wide x 3.32 in deep
  • -18 C to +55 C
  • N314
  • NEMA 1
  • 0
  • Driving (dB(A) @ 1m)-- 65; Holding (dB(A) @ 1m)-- 20 (no audible noise)
  • 95 degrees
  • 3/8 to 1/2 in. square or round
  • Damper
  • SPST; Two position
  • Spring Return
  • 192 mm high x 129 mm wide x 84 mm deep
  • 30 lb-in.
  • 3.4 Nm
  • Maximum Stall-- 150 lb-in.; Minimum Driving at 350 F-- 30 lb-in.
  • Maximum Stall-- 17 Nm; Minimum Driving at 175 C-- 3.4 Nm
  • Yes, 32003532-005
  • Driving @ 60 Hz-- 18 sec, 25 sec maximum
  • Maximum-- 15 sec
  • Aluminum Hub, two set screws
  • 10 to 13 mm square/round
  • CCW
  • 6 lb
  • 16 in.
  • 406 mm
  • 2.72 kg
  • Aluminum housing
  • Integral junction box with three 7/8 in. conduit openings (fittings not included)
  • Direct Coupled
  • 50 Hz; 60 Hz
