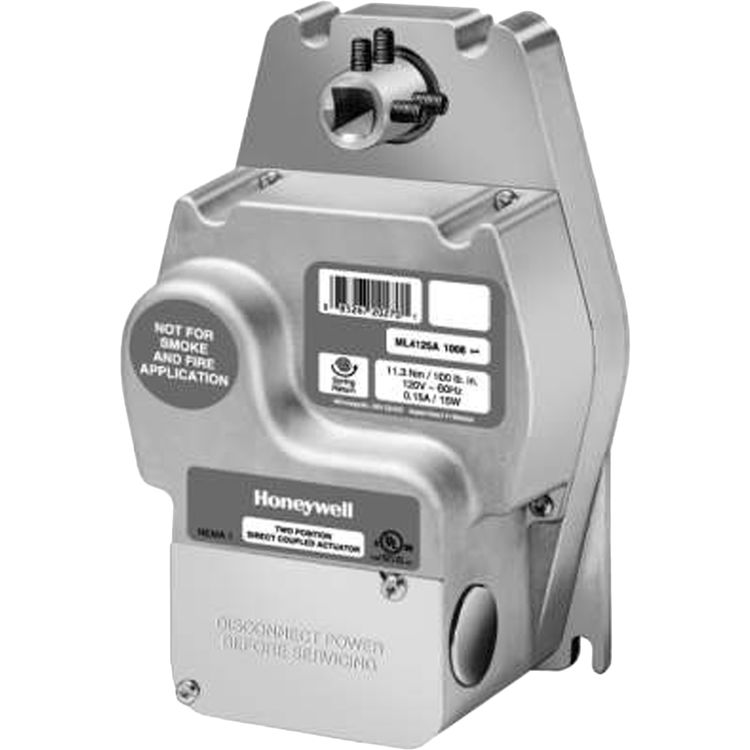

Honeywell ML8125A1004/U HVAC Fast-Acting, 2-Position Actuator

SKU: 374433
Minimum Quantity: 1

$162.82/ea
Save 60% · Retail: $411.80

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$162.82/ea

About the Honeywell ML8125A1004

Honeywell ML8125A1004/U HVAC Fast-Acting, 2-Position Actuator. Honeywell ML8125 is a Fast-Acting, Two-Position Actuator. 100 lb-in, Spring Return CCW

Product Details

Product: Actuator
Manufacturer: Honeywell
Style: Parts
Mpn # ML8125A1004
Weight 8.05 lbs.

Product Features

  • HVAC
  • 50 Hz; 60 Hz
  • UL873, Plenum Rated
  • Two color-coded leads
  • 5 to 95% RH, non-condensing
  • 24 Vac +20%, -10%
  • Driving-- 15.6 VA, Holding-- 4 VA
  • -40 F to +140 F
  • -18 C to +60 C
  • 89/336/ECC, 73/23/EEC
  • cUL C22.2 No. 24-93
  • 7.5 in high x 5.13 in wide x 3.32 in deep
  • -40 F to +130 F
  • -18 C to +55 C
  • N314
  • NEMA 1; IP54
  • 0
  • Driving (dB(A) @ 1m)-- 65; Holding (dB(A) @ 1m)-- 20 (no audible noise)
  • 95 degrees
  • 3/8 to 1/2 in. square or round
  • Damper
  • SPST; Two position
  • 192 mm high x 129 mm wide x 84 mm deep
  • Spring Return
  • 100 lb-in.
  • 11.3 Nm
  • Maximum Stall-- 240 lb-in.
  • Maximum Stall-- 27 Nm
  • Yes, 32003532-005
  • Driving @ 60 Hz-- 25 sec, 40 sec maximum
  • Maximum-- 25 sec
  • Aluminum Hub, two set screws
  • 10 to 13 mm square/round
  • Mounting bracket
  • CCW
  • 16 in.
  • 406 mm
  • 6 lb
  • 2.72 kg
  • Aluminum housing
  • Integral junction box with three 7/8 in. conduit openings (fittings not included)
  • Direct Coupled
