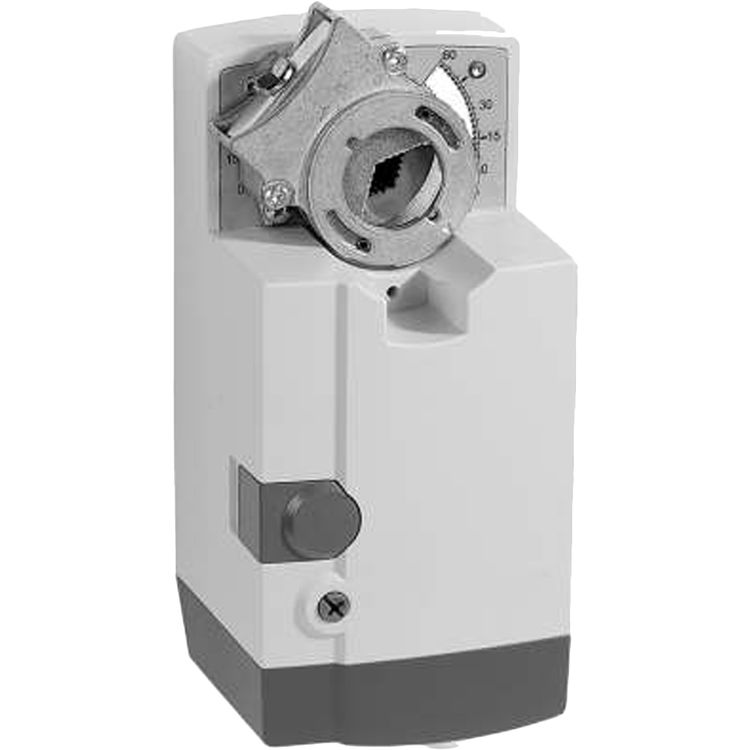

Honeywell MN7220A2205 (0)2-10 Vdc, (0)4-20 mA Actuator

SKU: 374451
Minimum Quantity: 1

$211.57/ea
Save 57% · Retail: $494.74

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$211.57/ea

About the Honeywell MN7220A2205

Honeywell MN7220A2205 (0)2-10 Vdc, (0)4-20 mA Actuator. The MN7220 is a 175 lb-in,, non-spring return, Direct-Coupled, Low Voltage Actuator that accepts adjustable modulating (0/2-10 Vdc) control for: air dampers, air handling units, ventilation flaps, louvers, and ball Valves.

Product Details

Product: Actuator
Manufacturer: Honeywell
Style: Parts
Mpn # MN7220A2205
Weight 13.05 lbs.

Product Features

  • HVAC
  • 50 Hz; 60 Hz
  • UL873, Plenum Rated
  • Tradeline
  • Enclosed screw terminal strip (22 to 14 AWG)
  • 5 to 95% RH, non-condensing
  • 24 Vac
  • Driving-- 6 VA, 6 W
  • -40 F to +175 F
  • -40 C to +80 C
  • 89/336/ECC, 73/23/EEC
  • 8.78 in high x 3.62 in wide x 3.15 in deep
  • cUL C22.2 No. 24-93
  • -5 F to +140 F
  • -20 C to +60 C
  • 250 Vac, 5 A res (3 A ind)
  • N314
  • NEMA 2; IP54
  • 2
  • Driving (dB(A) @ 1m)-- 40
  • 3/8 to 1.06 in. round or 3/8 to 11/16 in. square
  • 223 mm high x 92 mm wide x 80 mm deep
  • Damper; Valve
  • (0)2-10 Vdc (4-20 mA w/500 ohm resistor)
  • Non-Spring Return
  • 175 lb-in.
  • 20 Nm
  • Maximum Stall-- 257 lb-in.
  • Maximum Stall-- 29 Nm
  • Yes, SW2-US
  • By switch
  • Dual Integral Adj. Stops (3 degree increments)
  • Mounting bracket, self-centering shaft adapter
  • Driving @ 60 Hz-- 95 sec
  • Self-centering clamping
  • Declutch mechanism
  • 10 to 27 mm round or 10 to 18 mm square
  • 100K ohm (voltage), 500 ohm (current)
  • 2.98 lb
  • 1.35 kg
  • Plenum rated plastic housing
  • Integral 1/2 in. NPSM conduit connection.
  • Direct Coupled
