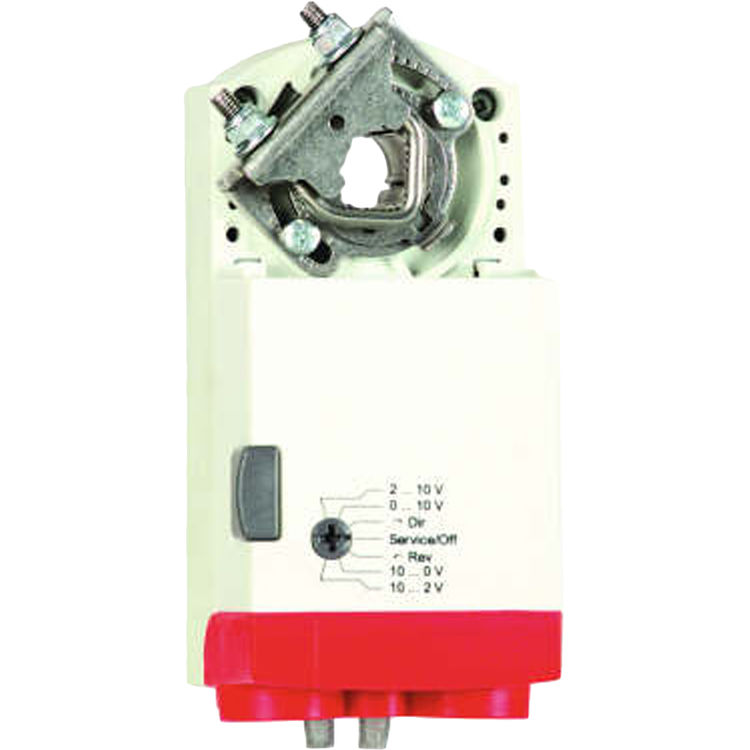

Honeywell MN7510A2209/U Modulating, Floating, Two Position Actuator

SKU: 374457
Minimum Quantity: 1

$152.25/ea
Save 57% · Retail: $356.04

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$152.25/ea

About the Honeywell MN7510A2209

Honeywell MN7510A2209/U Floating Two Position Actuator. The MN7510 is a 88 lb-in,, non-spring return, Direct-Coupled, Low Voltage Actuator that accepts adjustable modulating for: air dampers, air handling units, ventilation flaps, louvers, and ball Valves.

Product Details

Product: Actuator
Manufacturer: Honeywell
Style: Parts
Mpn # MN7510A2209
Weight 13.10 lbs.

Product Features

  • HVAC
  • 50 Hz; 60 Hz
  • UL873, Plenum Rated
  • Tradeline
  • Enclosed screw terminal strip (22 to 14 AWG)
  • 5 to 95% RH, non-condensing
  • 24 Vac +20%, -15%; 24 Vdc
  • Driving-- 5 VA
  • -22 F to +176 F
  • -30 C to +80 C
  • 89/336/ECC, 73/23/EEC
  • 5.23 in high x 2.60 in wide x 2.44 in deep
  • cUL C22.2 No. 24-93
  • -5 F to +140 F
  • -20 C to +60 C
  • 30 Vdc max., 3 A Class II
  • N314
  • NEMA 2; IP54
  • 2
  • Driving (dB(A) @ 1m)-- 35
  • 95 degrees
  • 1/4 to 1/2 in. square or 3/8 to 5/8 in. round
  • 134 mm high x 66 mm wide x 62 mm deep.
  • Damper; Valve
  • Floating; On/Off; (0)2-10 Vdc (4-20 mA w/500 ohm resistor); SPDT
  • Non-Spring Return
  • 88 lb-in.
  • 10 Nm
  • Maximum Stall-- 130 lb-in.
  • Maximum Stall-- 15 Nm
  • Yes, SSW2-1M
  • By switch
  • Dual Integral Adj. Stops (3 degree increments)
  • Mounting bracket, screws, shaft adapter, water-tight strain-relief cable fittings
  • Driving @ 60 Hz-- 95 sec
  • 1/4 of full scale span
  • U-bolt clamp
  • Declutch mechanism
  • 6 to 13 mm square or 8 to 16 mm round
  • 1 lb
  • 0.45 kg
  • Plenum rated plastic housing
  • Integral 1/2 in. NPSM conduit connection.
  • Direct Coupled
