Honeywell MP909D1441/U Damper Actuator

SKU: 374468
Minimum Quantity: 1

$33.68/ea
Save 59% · Retail: $82.90

See buying options below:



Ships From Price Qty
Massachusetts Warehouse
Ships in 1-3 Days
$34.23/ea 3
Order From Manufacturer
Available to Ship in 4-5 weeks
$33.68/ea

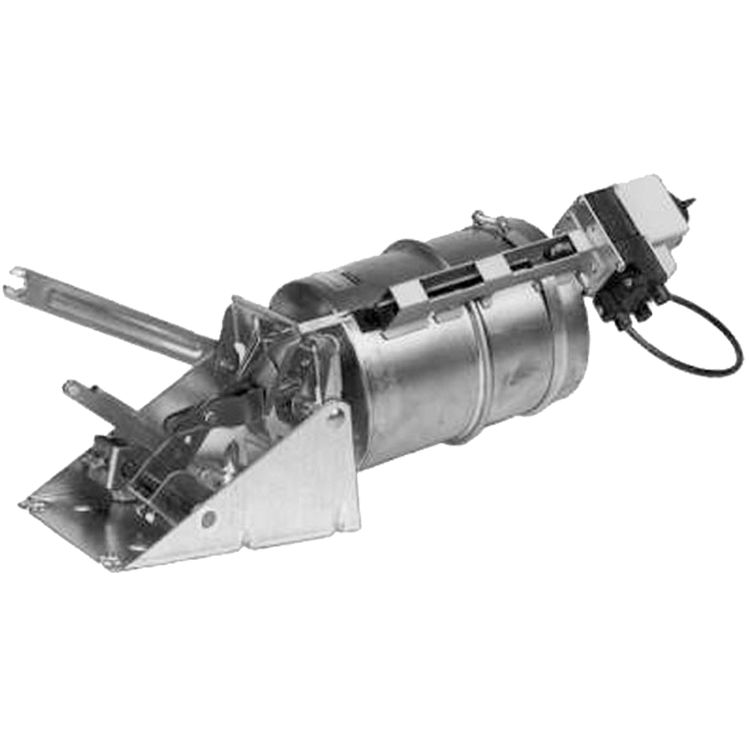

About the Honeywell MP909D1441

The Honeywell MP909D1441 5-10 Psi Spring Range Pneumatic Damper Actuator provides consistent control of your HVAC system. It has rugged ribbed aluminium body and low-friction shaft bearing. This damper actuator can be mounted in any position, externally or internally. It measures 6 5/16 inches long and 2 13/32 inches in diameter. Its maximum safe operating pressure is 30 psi and has a temperature range of 50 F to 140 F. It is very easy to install and requires no special tools. The Honeywell MP909D1441 5-10 Psi Spring Range Pneumatic Damper Actuator's air connection is sized for 5/32-inch (4 mm) or 1/4-inch (6 mm) O.D. plastic tubing. This product is available in different operating ranges for individual or series operation. The Honeywell MP909D1441 5-10 Psi Spring Range Pneumatic Damper Actuator is absolutely compatible with all the products from other companies. This product from Honeywell is quality tested and approved by Underwriters Laboratories Inc

Product Details

Product: Actuator
Manufacturer: Honeywell
Material: Aluminum
Style: Parts
Other Info: Easy To Install
Trade Tools: HVAC
Mpn # MP909D1441
Weight 7.30 lbs.

Product Features

  • Maximum Safe Operating Pressure (psi) 30 psi
  • Spring Return Fail Safe Mode
  • Damper Actuator Type
  • Operating Humidity Range (% RH) 5 to 95% RH
  • Approvals, Underwriters Laboratories Inc
  • Includes. 3/8 in.-16 Threaded Shaft Actuator
  • Temperature Range (F) 50 F to 140 F
  • Positive leak proof seal
  • Versatile mounting and connecting hardware options
  • Protected barb connector.
  • Close tolerance on operating range and stroke
  • Low-friction shaft bearing
  • Rugged ribbed aluminum body
  • Dimensions (mm) 160 mm long x 61 mm diameter
  • Underwriters Laboratories Inc. Approved
