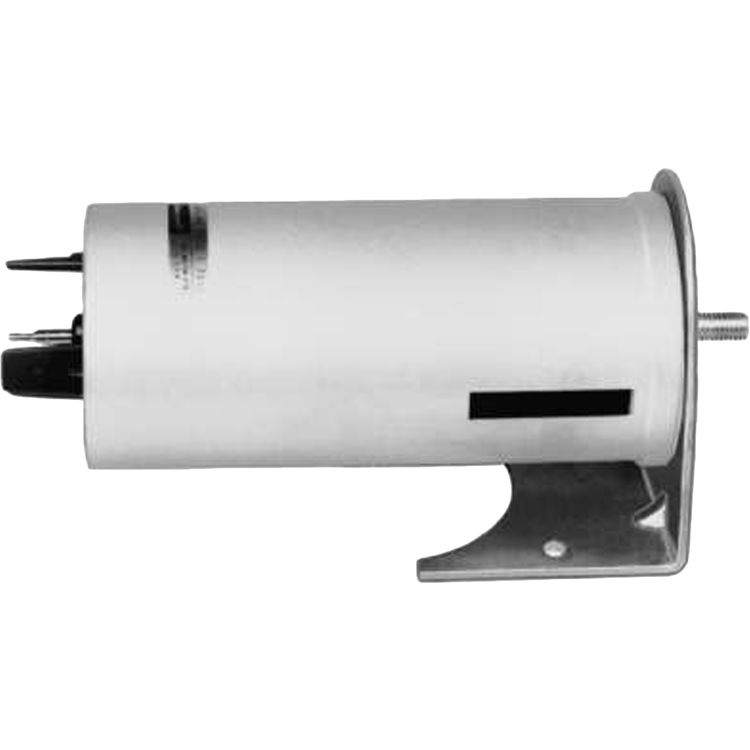

Honeywell MP909E1398 Honeywell MP909E1398 9-13 Psi, 3.1 Inch Stroke Spring Range Pneumatic Damper Actuator

Honeywell MP909E1398 9-13 Psi, 3.1 Inch Stroke Spring Range Pneumatic Damper Actuator

SKU: 374486

This product is not currently available for purchase.

About the Honeywell MP909E1398 9-13 Psi, 3.1 Inch Stroke Spring Range Pneumatic Damper Actuator

The Honeywell MP909E1398 9-13 Psi, 3.1 Inch Stroke Spring Range Pneumatic Damper Actuator provides consistent control of your HVAC system. It has rugged ribbed aluminium body and low-friction shaft bearing. This damper actuator can be mounted in any position, externally or internally. It measures 6 5/16 inches long and 2 13/32 inches in diameter. Its maximum safe operating pressure is 30 psi and has a temperature range of 50 F to 140 F. It is very easy to install and requires no special tools. The Honeywell MP909E1398 9-13 Psi, 3.1 Inch Stroke Spring Range Pneumatic Damper Actuator’s air connection is sized for 5/32-inch (4 mm) or 1/4-inch (6 mm) O.D. plastic tubing. This product is available in different operating ranges for individual or series operation. The Honeywell MP909E1398 9-13 Psi, 3.1 Inch Stroke Spring Range Pneumatic Damper Actuator is absolutely compatible with all the products from other companies. This product from Honeywell is quality tested and approved by Underwriters Laboratories Inc

Manufacturer: Honeywell
Mpn # MP909E1398
Weight 0.40 lbs.
  • Maximum Safe Operating Pressure (psi) 30 psi
  • Positive leak proof seal
  • Protected barb connector.
  • Underwriters Laboratories Inc. Approved
  • Spring Return Fail Safe Mode
  • Damper Actuator Type
  • Operating Humidity Range (% RH) 5 to 95% RH
  • Includes. 3/8 in.-16 Threaded Shaft Actuator
  • Temperature Range (F) 50 F to 140 F
  • Dimensions (mm) 160 mm long x 61 mm diameter
  • Rugged ribbed aluminum body
  • Low-friction shaft bearing
  • Close tolerance on operating range and stroke
