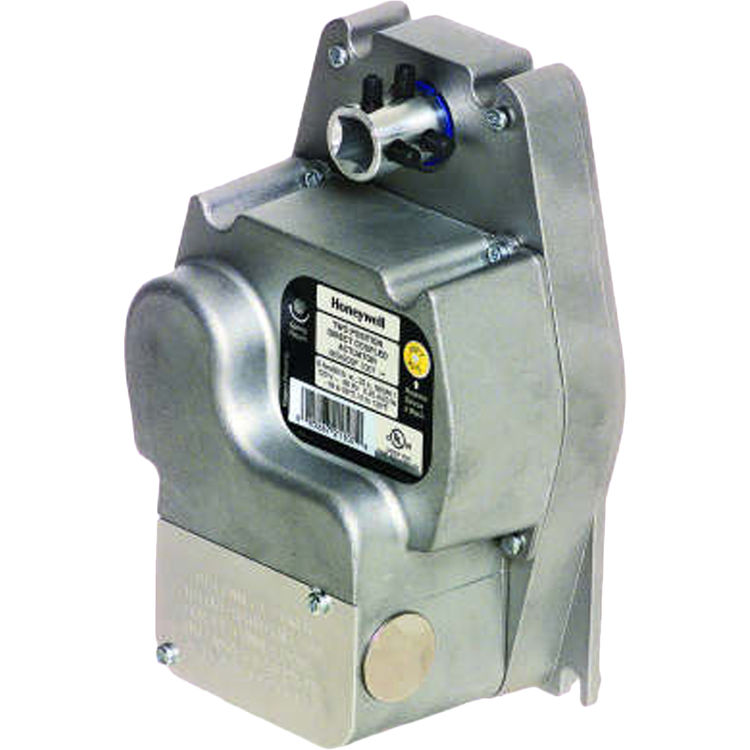

Honeywell MS4709F1014/B Fast Acting, Two Position Actuator

SKU: 374568

$228.66/ea
Save 61% · Retail: $582.57

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$228.66/ea

About the Honeywell MS4709F1014

Honeywell MS4709F1014/B Fast Acting, Two Position Actuator. Honeywell MS4709F 80 lb-in, 230 Vac, CW Actuator accepts Two-Position (SPST) control with an integral junction box. Reliably operates" smoke control systems requiring UL555S ratings up to 350F. MS4709F is spring return, and Direct-Coupled,

Product Details

Product: Actuator
Manufacturer: Honeywell
Style: Parts
Mpn # MS4709F1014

Product Features

  • Fire and Smoke
  • UL873, Plenum Rated
  • Appliance cable
  • 5 to 95% RH, non-condensing
  • 2-10 Vdc (Max. output: 1.0 mA)
  • Driving-- 0.13A, 23W, Holding-- 0.09A, 7W
  • -40 F to 140 F
  • -40 C to +60 C
  • 89/336/ECC, 73/23/EEC
  • cUL C22.2 No. 24-93
  • 0 F to +130 F
  • 7.5 in high x 5.13 in wide x 3.32 in deep
  • -18 C to +55 C
  • N314
  • NEMA 1; IP54
  • 0
  • Driving (dB(A) @ 1m)-- 80; Holding (dB(A) @ 1m)-- 20 (no audible noise)
  • 24 Vac
  • 3/8 to 1/2 in. square or round
  • Damper
  • Two position; SPST
  • Spring Return
  • 192 mm high x 129 mm wide x 84 mm deep
  • 80 lb-in.
  • 9 Nm
  • Maximum Stall-- 240 lb-in.; Minimum Driving at 350 F-- 80 lb-in.
  • Maximum Stall-- 27 Nm; Minimum Driving at 175 C-- 9 Nm
  • Yes, 32003532-005
  • Driving @ 60 Hz-- 15 sec, 25 sec maximum
  • Maximum-- 15 sec
  • Aluminum Hub, four set screws
  • 10 to 13 mm square/round
  • CW
  • 6 lb
  • 39 in.
  • 1 m
  • 2.72 kg
  • Aluminum housing
  • Integral junction box with three 7/8 in. conduit openings (fittings not included)
  • Direct Coupled
  • 50 Hz
