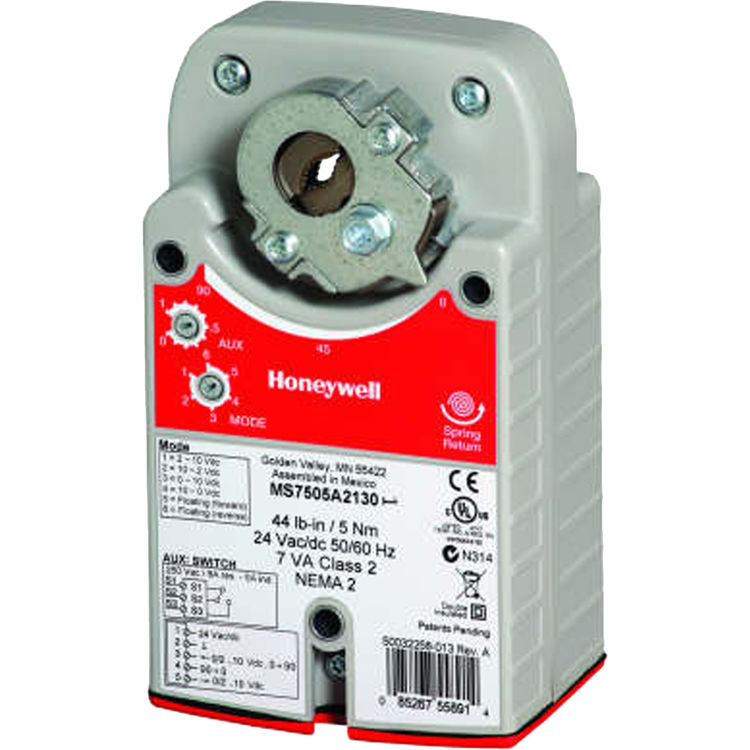

Honeywell MS7505A2130/U Honeywell Floating, Direct-Coupled Actuator

SKU: 374575

$176.93/ea
Save 63% · Retail: $473.83

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$176.93/ea

About the Honeywell MS7505A2130

Honeywell MS7505A2130/U Honeywell Floating, Direct-Coupled Actuator. Honeywell MS7505 is a 44 lb-in, spring return, Direct Coupled, line Voltage Actuator that accepts Two-Position (SPST) controls for air dampers, air handlers, ventilation flaps, louvers and ball Valves.

Product Details

Product: Actuator
Manufacturer: Honeywell
Style: Coupled
Mpn # MS7505A2130
Weight 1.80 lbs.

Product Features

  • HVAC
  • UL 873
  • Enclosed screw terminal strip (22 to 14 AWG)
  • 5 to 95% RH, non-condensing
  • 24 Vac or Vdc
  • Driving-- 6/3 VA
  • .-40 F to +150F
  • .-40 C to +65 C
  • EMC 2004/108/EC; Certification Low Voltage Directive 2006/95/EC; IEC 60730-1 and Part 2-14
  • cUL C22.2 No. 24-93
  • .-40 F to +149F
  • 6 81/54 high x 3 55/84 wide x 3 5/32 deep
  • 250 Vac, 8 A res (5 A ind)
  • N314
  • NEMA 2; IP54
  • 1
  • Driving (dB(A) @ 1m)-- 40; Holding (dB(A) @ 1m)-- 20 (no audible noise)
  • 2-10 Vdc (Max. output: 1.0 mA)
  • 3/8 to 5/8 in. round or 1/4 to 1/2 in. square
  • Damper; Valve
  • SPDT; Floating; On/Off; (0)2-10 Vdc (4-20 mA w/500 ohm resistor)
  • Spring Return
  • 177 mm high x 98 mm wide x 80 deep
  • 44 lb-in.
  • 5 Nm
  • Maximum Stall-- 105 lb-in.
  • Maximum Stall-- 12 Nm
  • adjustable 0-95 degrees
  • No
  • By switch
  • Mechanically limited 5 degree increments
  • Driving @ 60 Hz-- 90 sec
  • Maximum-- 25 sec
  • Mounting bracket, self-centering shaft adapter
  • (0)2-10 Vdc
  • Self-centering clamping
  • N/A
  • 9 to 16 mm round or 6 to 13 mm square
  • By orientation
  • Min. 95 kOhm
  • 3.5 lb
  • 1.6 kg
  • Plenum rated plastic housing
  • Direct Coupled
  • 50 Hz; 60 Hz
