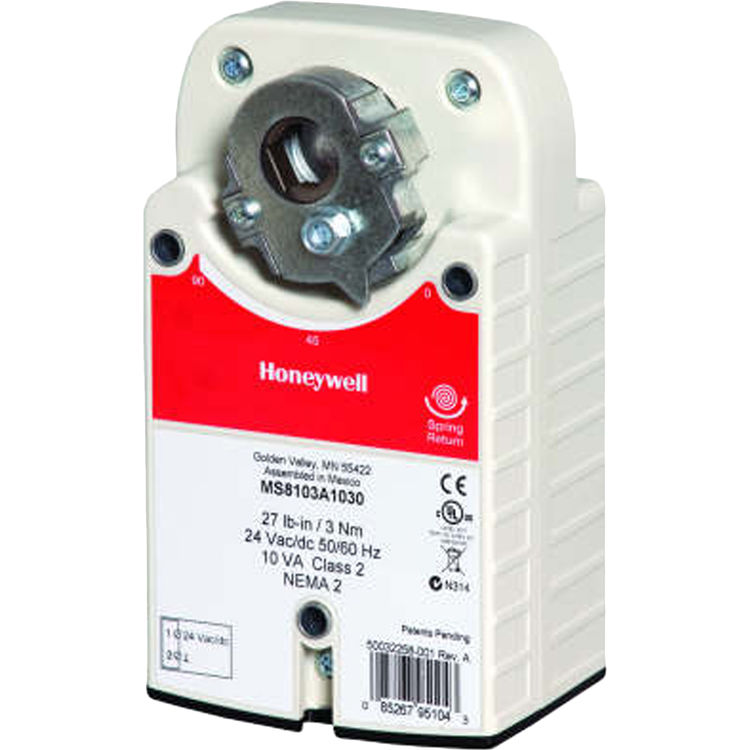

Honeywell MS8103A1030/U Honeywell Two Position, Direct-Coupled Actuator

SKU: 374588

$106.92/ea
Save 63% · Retail: $288.99

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$106.92/ea

About the Honeywell MS8103A1030

Honeywell MS8103A1030/U Honeywell Two Position, Direct-Coupled Actuator. Honeywell MS8103 spring return, Direct-Coupled, line Voltage Actuator

Product Details

Product: Actuator
Manufacturer: Honeywell
Style: Coupled
Mpn # MS8103A1030

Product Features

  • HVAC
  • UL 873
  • Enclosed screw terminal strip (22 to 14 AWG)
  • 5 to 95% RH, non-condensing
  • 24 Vac or Vdc
  • Driving-- 6/3 VA
  • .-40 F to +150F
  • .-40 C to +65 C
  • EMC 2004/108/EC; Certification Low Voltage Directive 2006/95/EC; IEC 60730-1 and Part 2-14
  • cUL C22.2 No. 24-93
  • .-22 F to +149F
  • 6 81/54 high x 3 55/84 wide x 3 5/32 deep
  • .-30 C to +65 C
  • N314
  • NEMA 2; IP54
  • 0
  • Driving (dB(A) @ 1m)-- 50; Holding (dB(A) @ 1m)-- 20 (no audible noise)
  • 230 Vac
  • 3/8 to 5/8 in. round or 1/4 to 1/2 in. square
  • Damper; Valve
  • Two position; SPST
  • Spring Return
  • 177 mm high x 98 mm wide x 80 deep
  • 27 lb-in.
  • 3 Nm
  • 27 lb-in
  • Maximum Stall-- 70 lb-in.
  • Maximum Stall-- 8 Nm
  • No
  • By switch
  • Mechanically limited 5 degree increments
  • Driving @ 60 Hz-- 45 sec
  • Maximum-- 25 sec
  • Mounting bracket, self-centering shaft adapter
  • Self-centering clamping
  • N/A
  • 9 to 16 mm round or 6 to 13 mm square
  • By orientation
  • 3.5 lb
  • 1.6 kg
  • Plenum rated plastic housing
  • Direct Coupled
  • 50 Hz; 60 Hz
