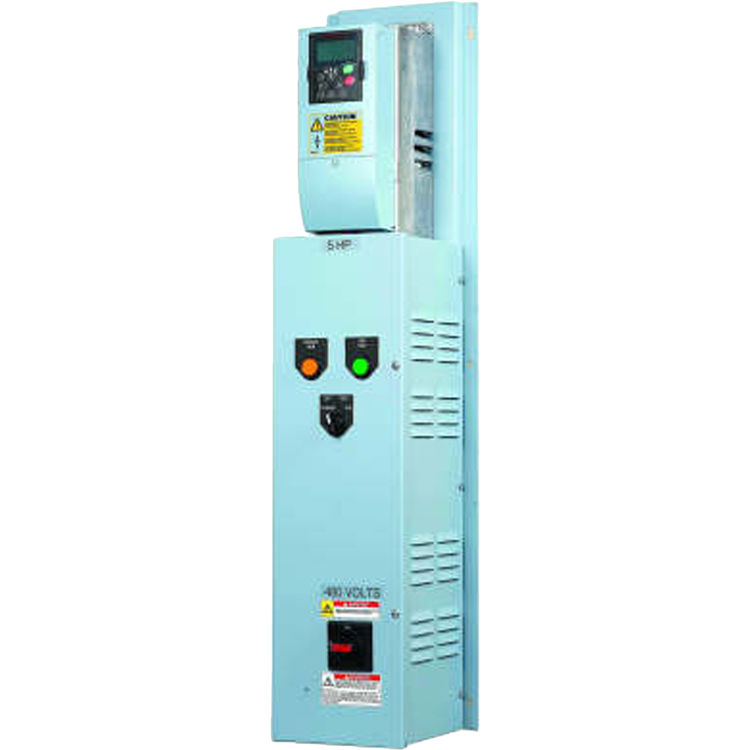

Honeywell NXBK0010CS20200000 NXS Variable Frequency Device (VFD) with Bypass

SKU: 374945

$2,605.31/ea Free Shipping!
Save 63% · Retail: $6,978.37

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$2,605.31/ea

About the Honeywell NXBK0010CS20200000

Honeywell NXBK0010CS20200000 NXS Variable Frequency Device (VFD) with Bypass. Variable Frequency Drives (VFD) accept a control input and then output tailored PWM control signal to operate (motors, fans, pumps, etc. ) with maximum efficiency. The VFD can be field-programmed without any extra devices or computer connections.

Product Details

Product: Variable Frequency Drive
Manufacturer: Honeywell
Mpn # NXBK0010CS20200000

Product Features

  • 36H x 10D x 16W
  • 24 Vdc/8A; 125 Vdc/0.4A; 250 Vac/8A
  • 1 HP
  • 4.8A
  • 0 (4) - 20 mA, max 500 ohm
  • Drive with 2 contactor bypass
  • No
  • NXS
  • 2 Contactors
  • No Disconnect
  • Industrial filter
  • 882H x 245D x 392W
  • overload 1.5 x High overload current (1min/10min); overload 1.1 x Low overload current (1min/10min)
  • 200% High; 150% Low
  • 2 x high overload current, 2 seconds every 20 seconds
  • 0 - 3000 sec
  • 0 - 10 Vdc , 200K ohm
  • 0 (4) - 20 mA, 250 ohm differential
  • 50 mA/48v open collector
  • +10V, +3%, max 10mA
  • 95 degrees
  • FR4
  • 53 lb
  • Vertical
  • 116.6 kg
  • 0 Hz to 320 Hz
  • 208 Vac
  • High Overload 14 to 122; Low Overload 14 to 107
  • Low Overload -10 to 43; High Overload -10 to 50
  • NEMA 12
