Honeywell NXS0020B1206 Honeywell NXS0020B1206/U Variable Frequency Drives (VFD)

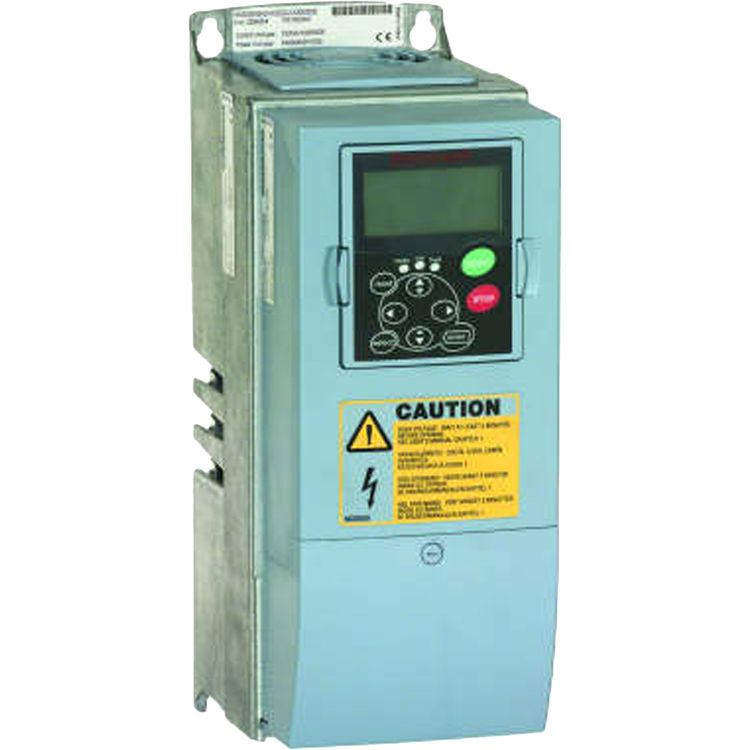

Honeywell NXS0020B1206/U Variable Frequency Drives (VFD)

SKU: 375582

This product is not currently available for purchase.

About the Honeywell NXS0020B1206/U Variable Frequency Drives (VFD)

Honeywell NXS0020B1206/U Variable Frequency Drives (VFD). Variable Frequency Drives (VFD) accept a control input and then output tailored PWM control signal to operate(fans, pumps, etc. ) with maximum efficiency. The VFD can be field-programmed without any extra devices or computer connections.

Product: Variable Frequency Drive
Manufacturer: Honeywell
Mpn # NXS0020B1206
Weight 84.00 lbs.
  • 5.4 x 11.5 x 7.5
  • 24 Vdc/8A; 125 Vdc/0.4A; 250 Vac/8A
  • 2 HP
  • 7.8A
  • 0 (4) - 20 mA, max 500 ohm
  • Drive alone
  • NXS
  • Industrial filter
  • overload 1.5 x High overload current (1min/10min); overload 1.1 x Low overload current (1min/10min)
  • 200% High; 150% Low
  • 2 x high overload current, 2 seconds every 20 seconds
  • 137.2 mm x 292.1mm x 190.5 mm
  • 0 - 3000 sec
  • 0 - 10 Vdc , 200K ohm
  • 0 (4) - 20 mA, 250 ohm differential
  • 50 mA/48v open collector
  • +10V, +3%, max 10mA
  • 24V,-15%, max 25ft mA
  • FR4
  • Stand-alone drive
  • 11 lb
  • 5.0 kg
  • 0 Hz to 320 Hz
  • 208 Vac; 230 Vac
  • High Overload 14 to 122; Low Overload 14 to 104
  • High Overload -10 to 50; Low Overload -10 to 40
  • NEMA 12
