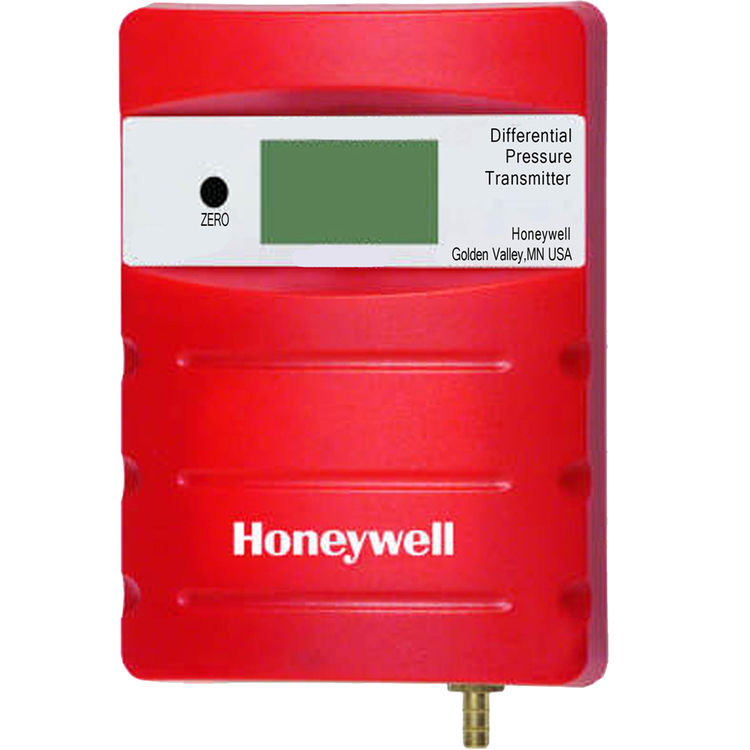

Honeywell P7640B1016 Honeywell P7640B1016/U Duct Differential Pressure Transmitter

Honeywell P7640B1016/U Duct Differential Pressure Transmitter

SKU: 375691

This product is not currently available for purchase.

About the Honeywell P7640B1016/U Duct Differential Pressure Transmitter

Honeywell P7640B1016/U Duct Differential Pressure Transmitter. P7640 Pressure Sensors are designed with field-selectable 4-20 mA, 0-5 Vdc, or 0-10 Vdc output. They switch selectable pressure ranges between 0-1" w. c. /0-250 Pa or 0-10" w. c. /0-2500PA depending on the model.

Manufacturer: Honeywell
Style: Parts
  Transmitter
Color: Red
Electrical Voltage: 24 Volt
Other Info: Easy To Install
Trade Tool Type: HVAC
Mpn # P7640B1016
Weight 1.20 lbs.
  • Display : None
  • Offers both pushbutton and digital input to zero the output
  • With microprocessor algorithm prevents accidental zero adjustment during normal operation.
  • The P7640A Panel Mount, P7640B Duct Mount and P7640U Universal Mount Differential Pressure Transmitters provide reliable, accurate measurement and control.
  • Proper applications include measurement of extremely low pressure applications such as: building/room pressure, air flow, variable air volume, filter status, and duct pressure.
  • Ideal for clean rooms, hospitals, fume hoods, and computer rooms.
  • Selectable inches w.c. or Pascal scale.
  • Selectable fast or standard response time.
  • Duct mount model comes with factory installed duct probe.
  • The Universal model comes with attachable duct probe
  • Duct probe can be used in either panel or duct mounting application.
  • Temperature-compensated transmitter with advanced ceramic capacitive sensing element
  • Maintenance-free operation.
  • With auto zero calibration by push button or external contact closure
  • Offers uni- or bi-directional output.
  • The P7640 Pressure Sensors are designed with field-selectable 4-20 mA, 0-5 Vdc, or 0-10 Vdc output.
  • The P7640A,B offer four configurable pressure ranges, selectable between 0-1†w.c/0-250 Pa or 0-10†w.c/0-2500 Pa
  • The P7640U offers configurable pressure ranges between 0-10 in. w.c/0-2500 Pa
  • With easy to set rotary switch.
