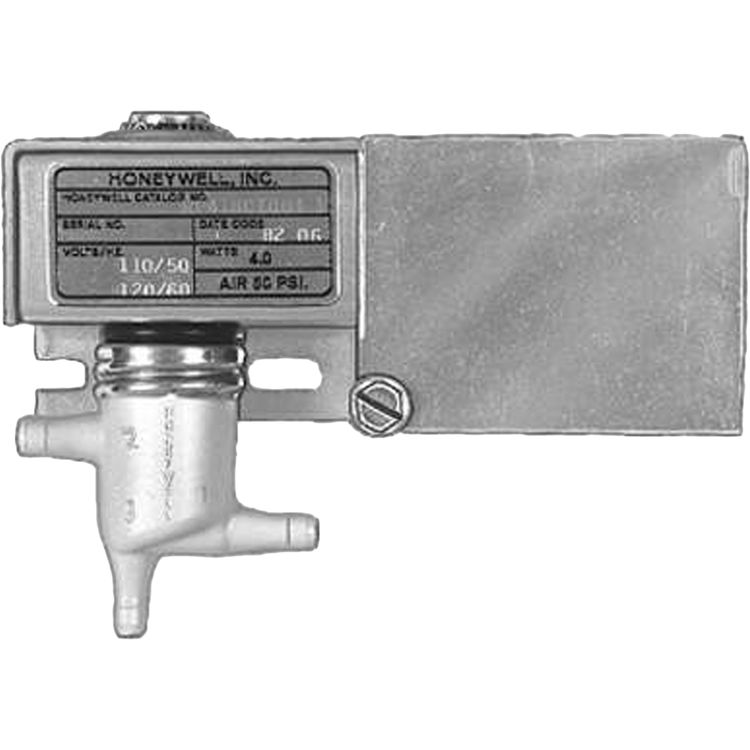

Honeywell RP418A1073/U Surface Mounted Electric / Pneumatic Relay

SKU: 375906
Minimum Quantity: 1

$73.27/ea
Save 58% · Retail: $176.21

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$73.27/ea

About the Honeywell RP418A1073

Honeywell RP418A1073/U Surface Mounted Electric Pneumatic Relay. Pneumatic-electric switches convert a controller's pneumatic signal to electrical switching, providing start and stop control. Replacements available for Johnson, Powers, Robertshaw, Barber-Colman, and older Honeywell pneumatic/ electric switches.

Product Details

Manufacturer: Honeywell
Type: Electric
Style: Pneumatic
Fuel Type: Electrical
Mpn # RP418A1073
Weight 3.00 lbs.

Product Features

  • Electric / Pneumatic Relay
  • Surface
  • 60 Hz
  • Component Recognized File: MP1502, Vol. 11, Sec. 1,UL Listed: Guide Y10Z
  • Listed: File No. LR50900
  • Junction Box and 15 in. (380 mm) leads
  • 5 to 95% RH
  • 277 Vac
  • Barbed fitting for 1/4 in. O.D. plastic tubing
  • 0.075 Cv minimum
  • Energized: ports 1 and 3 connected, port 2 blocked,De-energized: ports 2 and 3 connected, port 1 blocked
  • 0.42 scfm (200 mL/s) at 20 psi (138 kPa) supply with 1 psi (7 kPa) pressure drop
  • 2 7/8 in. high x 3 13/16 in. wide x 1 1/4 in. deep
  • 73 mm high x 97 mm wide x 32 mm deep
  • 50 psi, maximum
  • 340 kPa, maximum
  • 0 F to 100 F
  • -18 C to +38 C
  • Junction Box
