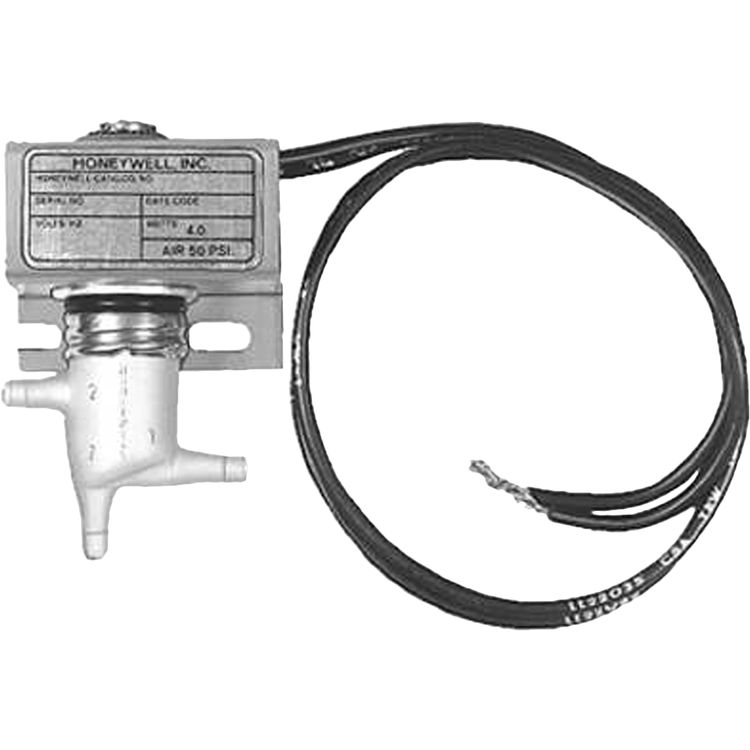

Honeywell RP418B1030 Honeywell RP418B1030/U Panel Mounted Electric / Pneumatic Relay

Honeywell RP418B1030/U Panel Mounted Electric / Pneumatic Relay

SKU: 375911

This product is not currently available for purchase.

About the Honeywell RP418B1030/U Panel Mounted Electric / Pneumatic Relay

Honeywell RP418B1030/U Panel Mounted Electric Pneumatic Relay. Electrically operated pneumatic switches used to interlock an electrical and pneumatic control system. Replacement devices are available for Johnson, Powers, Robertshaw, Barber-Colman, and older Honeywell devices.

Manufacturer: Honeywell
Style: Relay
  Parts
  Pneumatic
Mpn # RP418B1030
Weight 1.30 lbs.
  • Electric / Pneumatic Relay
  • 50 Hz
  • Component Recognized File: MP1502, Vol. 11, Sec. 1,UL Listed: Guide Y10Z
  • Listed: File No. LR50900
  • 15 in. (380 mm) leads
  • 5 to 95% RH
  • 120 Vac
  • Barbed fitting for 1/4 in. O.D. plastic tubing
  • 0.075 Cv minimum
  • Energized: ports 1 and 3 connected, port 2 blocked,De-energized: ports 2 and 3 connected, port 1 blocked
  • 0.42 scfm (200 mL/s) at 20 psi (138 kPa) supply with 1 psi (7 kPa) pressure drop
  • 2 7/8 in. high x 1 3/4 in. wide x 1 1/4 in. deep
  • 73 mm high x 44 mm wide x 32 mm deep
  • 50 psi, maximum
  • 340 kPa, maximum
  • 0 F to 100 F
  • -18 C to +38 C
  • Panel mount
