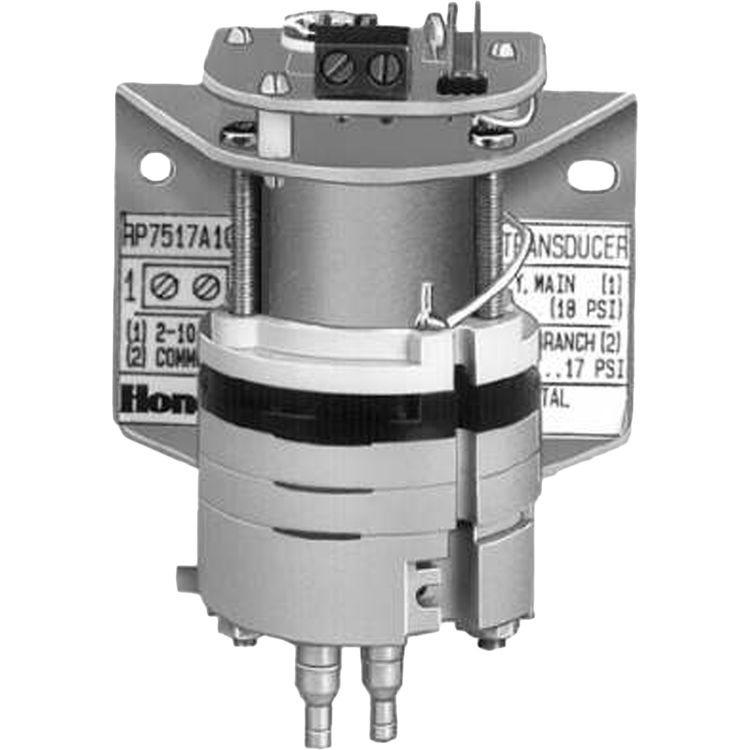

Honeywell RP7517A1017 Honeywell RP7517A1017 Electronic Pneumatic Transducer

Honeywell RP7517A1017 Electronic Pneumatic Transducer

SKU: 375925

This product is not currently available for purchase.

About the Honeywell RP7517A1017 Electronic Pneumatic Transducer

Honeywell RP7517A1017 Electronic Pneumatic Transducer. Electronic-Pneumatic Transducers are used in electronic-pneumatic control systems to convert a proportional electric output signal from a controller into a direct-acting, proportional pneumatic signal.

Manufacturer: Honeywell
Style: Parts
  Pneumatic
Product Collection: Electronic
Mpn # RP7517A1017
Weight 0.95 lbs.
  • Electric to pneumatic Transducer
  • screw terminals for 14 to 22 gage wire
  • 5 to 95% RH
  • Powered by Control signal
  • 0 to 18 psi; Output--3 to 15 psi
  • 0 to 125 kPa; Output--21 to 103 kPa
  • 2 to 10 Vdc
  • Dual barb-fittings for 1/4 in. or 5/32 in. O.D. plastic tubing
  • 0.45 scfm (211 mL/s)
  • 16 psi with 18 psi main pressure at 12 Vdc or 16 psi at 11 Vdc ( min. )
  • 116 kPa with 125 kPa main pressure at 12 Vdc or 110 kPa at 11 Vdc ( min. )
  • 0.025 scfm (117mL/s)
  • 0.5 psi at 0 Vdc
  • 3.5 kPa at 0 Vdc
  • 16 mA
  • 2 7/16 in. wide x 3 3/8 in. high x 1 7/8 in. deep
  • 62 mm wide x 86 mm high x 48 mm deep
  • 30 psi, maximum
  • 205 kPa, maximum
  • 131 F, maximum
  • 55 C, maximum
  • Without cover, without internal power supply for panel mounting (2 wire)
