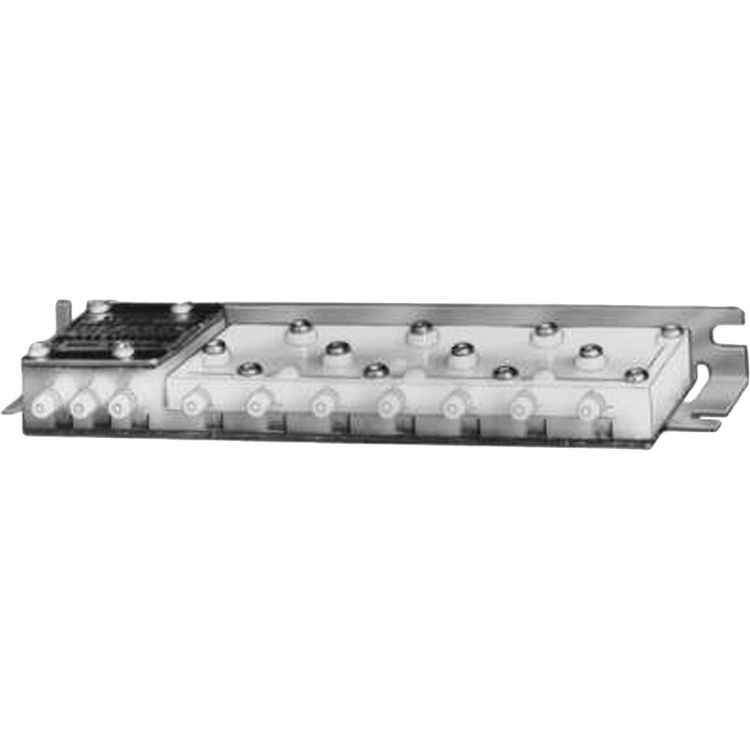

Honeywell RP913A1008/U Panel Mounted Load Analyzer Relay

SKU: 375931

Save 62% · Retail: $338.19

In Stock and Ready to Ship

Ships From Price Qty
Massachusetts Warehouse
Ships in 1-4 Days
$128.18/ea 2
Illinois Warehouse
Ships in 4-6 Days
$131.78/ea 5
Order From Manufacturer
Available to Ship in 3-4 weeks

About the Honeywell RP913A1008

Honeywell RP913A1008/U Panel Mounted Load Analyzer Relay. A diaphragm logic pressure selector selects the highest/lowest branch pressure input from zone thermostats to operate final control elements in pneumatic control applications. Replacements available for Johnson, Powers, Robertshaw, and Barber-Colman.

Product Details

Manufacturer: Honeywell
Style: Parts
Mpn # RP913A1008
Weight 0.81 lbs.

Product Features

  • Load Analyzer Relay, 7 input
  • 5 to 95% RH
  • Barb fittings (10) for 1/4 in. (6 mm) O.D. plastic tubing
  • 0.039 scfm at 1 psi differential (18 mL/s at 5 kPa differential)
  • Selects highest and/or lowest branch pressure input to operate final control elements
  • 0.04 scfm (0.019 mL/s)
  • 3/4 in. high x 6 1/2 in. long x 2 1/16 in. deep
  • 19 mm high x 165 mm long x 52 mm deep
  • 25 psi, maximum
  • 172 kPa, maximum
  • 0 F to 140 F
  • -18 C to +60 C
  • Wall or In-line or panel
