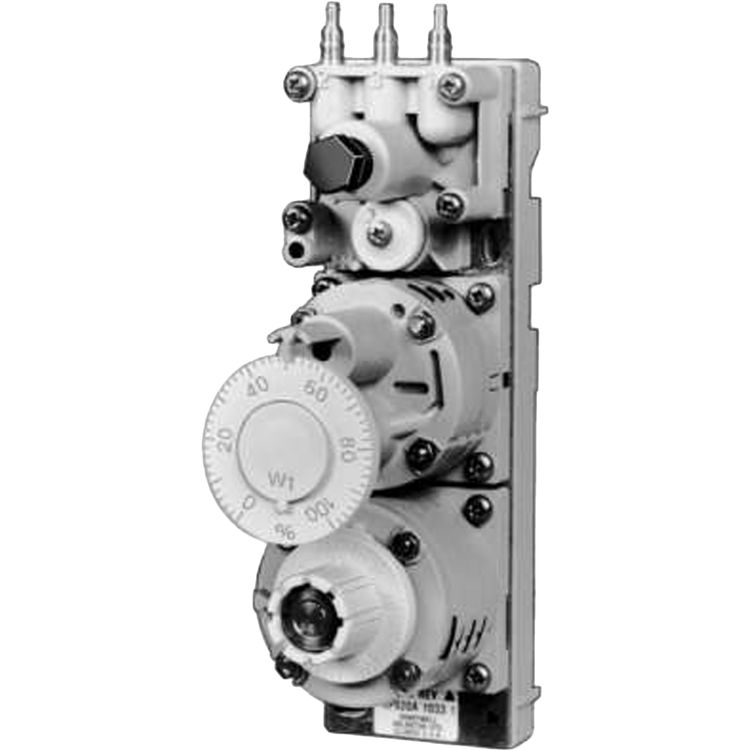

Honeywell RP920C1021/U Pneumatic Controller

SKU: 375937
Save 62% · Retail: $866.13

   Available to Ship in 2-3 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks

About the Honeywell RP920C1021

Honeywell RP920C1021/U Pneumatic Controller. The Pneumatic Controller is a High capacity, single/dual input pneumatic controller, used in conjunction with remote sensors, to provide proportional (P) or proportional plus integral (P+I) control of temperature, humidity, pressure, or dew point for heating and air conditioning.

Product Details

Product: Controller
Manufacturer: Honeywell
Style: Pneumatic
Mpn # RP920C1021
Weight 0.35 lbs.

Product Features

  • Proportional plus integral pneumatic controller
  • The controller is capable of operating with the MLP (Mainline pressure) as low as 15 psi (100 kPa) or as high as 23 psi (160 kPa), however recalibration may be required. All RP920s can be converted to reverse acting in the field. For additional technical
  • N/S
  • 5 to 95% RH
  • Air: Combination 5/32 in. by 1/4 in. barb. Optional accessory 14003755-001 (barb fitting for port 4,6,7, or 8 for all RP920).
  • Input Signal-- 3 to 15 psi; Output-- 3 to 13 psi, output signal maximum is Mainline Pressure minus 1/2 psi
  • Input Signal-- 21 to 103 kPa; Output-- 21 to 90 kPa, output signal maximum is Mainline Pressure minus 7 kPa
  • Direct Acting
  • 17 to 21 psi; Maximum Safe-- 30 psi
  • 115 to 145 kPa; Maximum Safe-- 205 kPa
  • at 18 psi (124 kPa) MLP and 8.5 psi (59 kPa) BLP (does not include sensor usage): 0.021 scfm (10 mL/s)
  • 0.07 scfm (33.0 mL/s) with 1 psi (7kPa) pressure drop at 18 psi (124 kPa) main air supply
  • single
  • Yes
  • 5 7/8 in. high x 3 13/16 in. wide x 3 1/4 in. without cover x 3 3/8 in. deep with cover
  • 148 mm high x 96 mm wide x 83 mm without cover x 86 mm deep with cover
  • 30 psi
  • 207 kPa
  • 40 F to 130 F
  • 5 C to 55 C
  • With remote control point adjustment capability.
