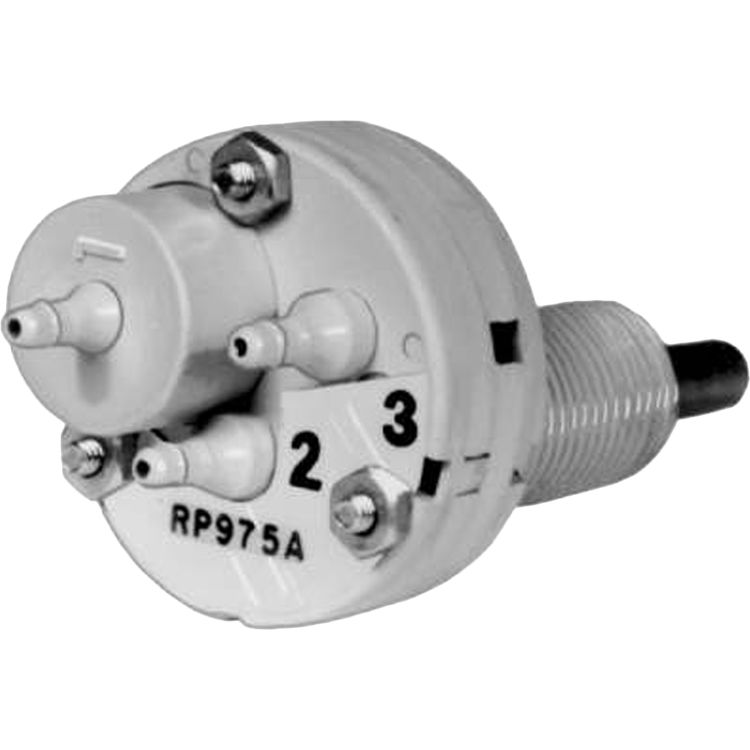

Honeywell RP975A1003/U Pneumatic Three-Port Hesitation Relay

SKU: 375948

Save 55% · Retail: $178.24

  Available to Ship in 4-5 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks

About the Honeywell RP975A1003

Honeywell RP975A1003/U Pneumatic Three-Port Hesitation Relay. A three-port hesitation relay provides minimum outside air damper position plus controlled ventilation for large volume unit ventilators. Replacement devices are available for Johnson, Powers, and Barber-Colman devices.

Product Details

Manufacturer: Honeywell
Style: Pneumatic
Mpn # RP975A1003
Weight 0.10 lbs.

Product Features

  • Pneumatic Three-Port Hesitation relay
  • Knob has two (2) internal breakaway stops that limit rotation to 188 degrees. Each stop, when removed, adds 56 degrees of rotation. Maximum rotation is 300 degrees.
  • Wall or In-line or panel
  • 5 to 95% RH
  • Barb fittings 5/32 in. (4 mm) O.D. plastic tubing
  • 0.003 scfm (1.65 mL/s)
  • Provides minimum outside air damper position
  • 0.022 scfm (10 mL/s)
  • 2 1/4 in. high x 2 1/2 in. wide x 3 3/4 in. deep
  • 57 mm high x 63 mm wide x 96 mm deep
  • 30 psi, maximum
  • 205 kPa, maximum
  • 32 F to 125 F
  • 0 C to 52 C
  • 14003030-001, 1 1/2 in. Mounting Clip for mounting relay to wall or panel. Also includes scaleplate and knob, factory mounted and calibrated. Use with MP909 or MP918 Damper Actuator having a 7 to 13 psi (50 to 90 kPa) spring range
