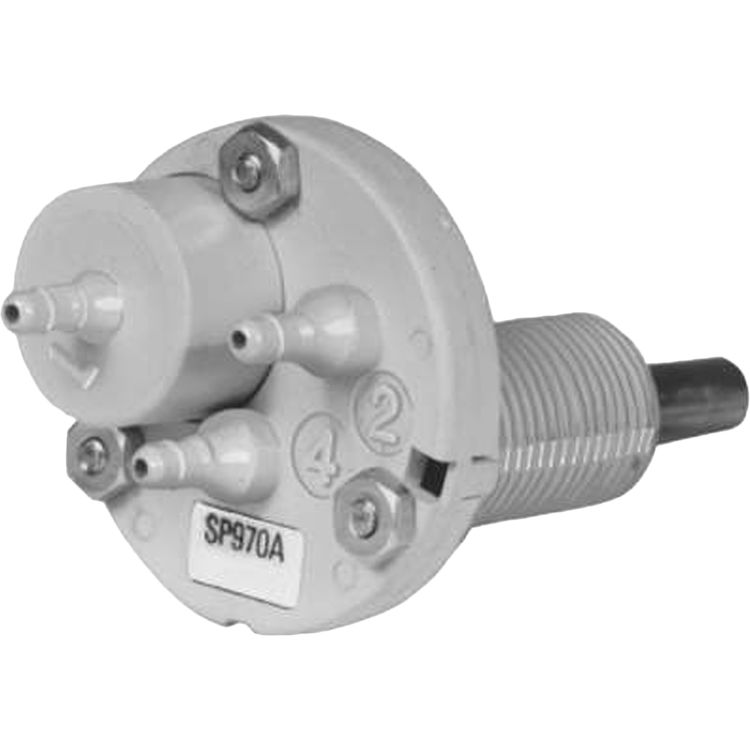

Honeywell SP970A1005/U Manual or minimum Position pressure regulator

SKU: 375997
Save 59% · Retail: $106.48

See buying options below:

Ships From Price Qty
Massachusetts Warehouse
Ships in 1-3 Days
$43.96/ea 4
Order From Manufacturer
Available to Ship in 2-3 weeks

About the Honeywell SP970A1005

Honeywell SP970A1005/U Manual or Minimum Position Pressure Regulator. Manually positions a remote damper actuator or reset the setpoint of a pneumatic controller. They can also provide minimum damper position. Replacement Kits are available for Johnson, Powers, Robertshaw, Barber-Colman, and older Honeywell switches.

Product Details

Product: Regulator
Manufacturer: Honeywell
Type: Pressure Regulator
Style: Parts
Mpn # SP970A1005

Product Features

  • Manual Pressure Regulator
  • The setpoint knob normally rotates 188 degrees. Two breakaway stops on the knob allow rotation of 244 degrees and 300 degrees.
  • Panel or Wall
  • 5 to 95% RH
  • Output Span--10 psi with 188 degree knob rotation, 13 psi with 244 degree knob rotation, and 16 psi with 300 degree knob rotation
  • Output Span--69 kPa with 188 degree knob rotation, 90 kPa with 244 degree knob rotation, and 110 kPa with 300 degree knob rotation
  • Used to manually position a remote damper actuator or reset setpoint of pneumatic controller
  • Three-port pneumatic manual or minimum position switch
  • Barb fitting for 5/32 in. (4 mm) O.D. plastic tubing
  • 0.021 scfm (9.4 mL/s) below minimum position. Above minimum position, device feeding pilot determines capacity
  • 0.022 scfm (9.8 mL/s)
  • 1 1/2 in. diameter x 3 in. deep
  • 38 mm diameter x 76 mm deep
  • 30 psi, maximum
  • 207 kPa, maximum
  • 0 F to 140 F
  • -18 C to +60 C
  • Knob, 0 to 100% scale plate and locknuts
