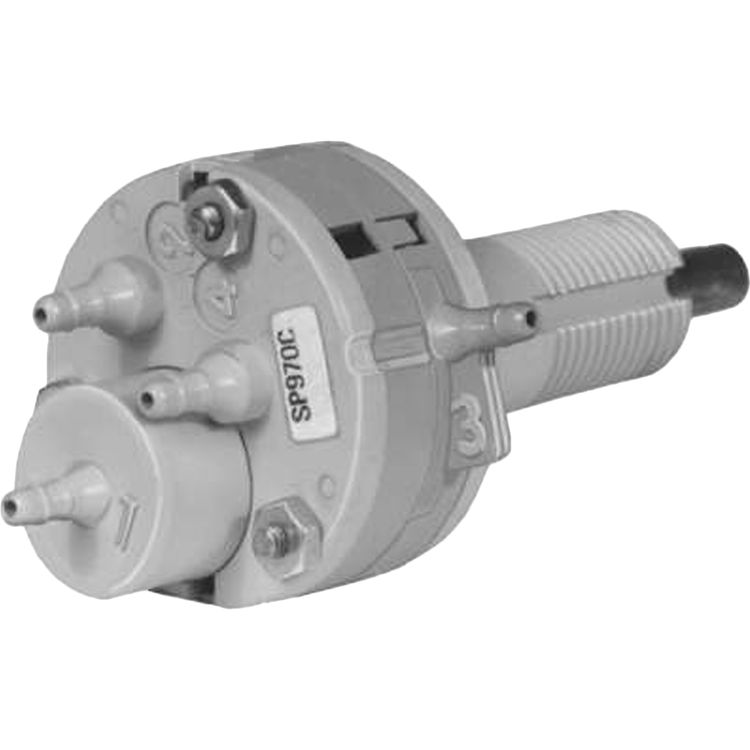

Honeywell SP970C1043/U Manual or minimum Position pressure regulator

SKU: 376001
Save 62% · Retail: $140.88

   Available to Ship in 2-3 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks

About the Honeywell SP970C1043

Honeywell SP970C1043/U Manual or Minimum Position Pressure Regulator. Manually positions a remote damper actuator or reset the setpoint of a pneumatic controller. They can also provide minimum damper position. Replacement Kits are available for Johnson, Powers, Robertshaw, Barber-Colman, and older Honeywell switches.

Product Details

Product: Regulator
Manufacturer: Honeywell
Type: Pressure Regulator
Style: Parts
Mpn # SP970C1043
Weight 0.85 lbs.

Product Features

  • Manual Pressure Regulator
  • The setpoint knob normally rotates 188 degrees. Two breakaway stops on the knob allow rotation of 244 degrees and 300 degrees.
  • Panel or Wall
  • 5 to 95% RH
  • Output Span--5 psi with 188 degree knob rotation, 6.5 psi with 244 degree knob rotation and 8 psi with 300 degree knob rotation
  • Output Span--34 kPa with 188 degree knob rotation, 45 kPa with 244 degree knob rotation, and 56 kPa with 300 degree knob rotation
  • Used to manually position a remote damper actuator or reset setpoint of pneumatic controller
  • Four-port pneumatic manual switch with isolated pilot chamber
  • Barb fitting for 5/32 in. (4 mm) O.D. plastic tubing
  • 0.021 scfm (9.4 mL/s)
  • 0.022 scfm (9.8 mL/s)
  • 1 1/2 in. diameter x 3 in. deep
  • 38 mm diameter x 76 mm deep
  • 30 psi, maximum
  • 207 kPa, maximum
  • 0 F to 140 F
  • -18 C to +60 C
  • Knob, 0 to 100% scale plate and locknuts


4.5 out of 5 rating is our rating for, we got that rating because we have lots of experience and great people with expertise in plumbing. BUT WE WANT YOUR HELP. This product doesn't have any reviews yet, and we don't want to write our own reviews. It is more valuable to us that the customers get to share their experience with our products. Please, if you have any experience with this product, take a moment to share and help someone else who is trying to make a decision. Thank you!
