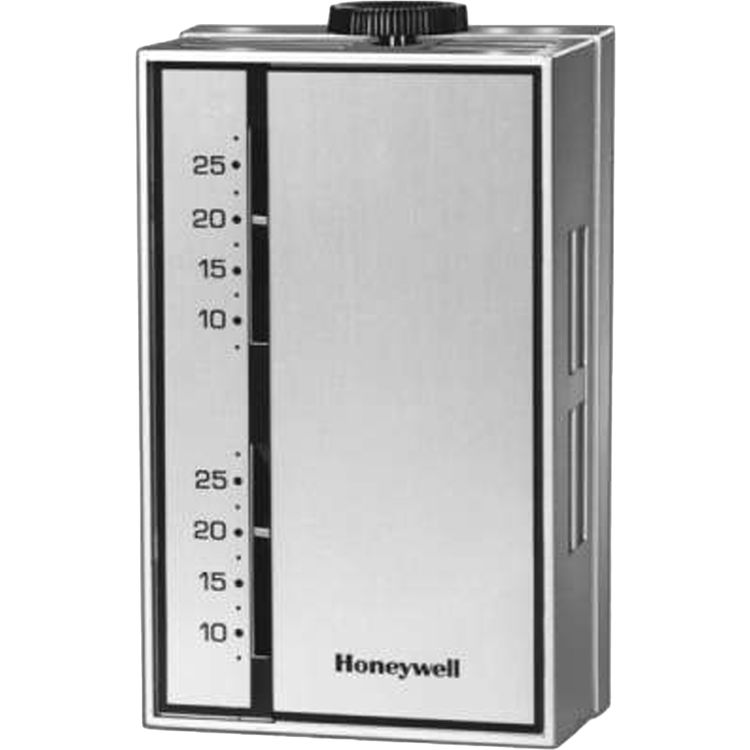

Honeywell T6052A1023 Honeywell T6052A1023/U Tradeline Heavy Duty Line Voltage Thermostat

Honeywell T6052A1023/U Tradeline Heavy Duty Line Voltage Thermostat

SKU: 376139

This product is not currently available for purchase.

About the Honeywell T6052A1023/U Tradeline Heavy Duty Line Voltage Thermostat

Honeywell T6052A1023/U Tradeline Heavy Duty Line Voltage Thermostat. Heavy Duty Line Voltage Thermostats used to control fan coils, fans, motor starters, valves, contactors, and circulator motors in heating and/or cooling systems.

Manufacturer: Honeywell
Mpn # T6052A1023
Weight 1.55 lbs.
  • UN 2037 Butane (Receptacles, small, containing gas cartridges), 2.1, LTD. QTY, one Fiberboard box X 1kg
  • CSA Certified: File no. LR1620
  • Screw terminals
  • 120 Vac; 240 Vac
  • 2-stage heating or 2-stage cooling
  • Vapor filled dual diaphragm
  • Stage 1 Heat, Stage 2 Cool: 1.4 C; Stage 2 Heat, Stage 1 Cool: 1.8 C
  • Plastic cover, tan
  • 2 SPDT switches
  • 8 C to 29 C
  • Two stage heating or two stage cooling
  • 5 in. high x 3 1/8 in. wide x 1 5/8 in. deep
  • 127 mm high x 79 mm wide x 41 mm deep
  • Vertical or horizontal mounting
  • Q651C subbase for system and fan switching
  • Stage 1: 120 Vac: 16 AFL, 96 ALR; 240 Vac: 8 AFL, 48 ALR ; Stage 2: 120 Vac: 8 AFL, 48 ALR; 240 Vac: 4 AFL, 24 ALR
  • 50 Hz; 60 Hz
  • Listed: File No. E4436, Guide No. XAPX
